M22-2041005
M22-2041005
Favorite Products
Share:

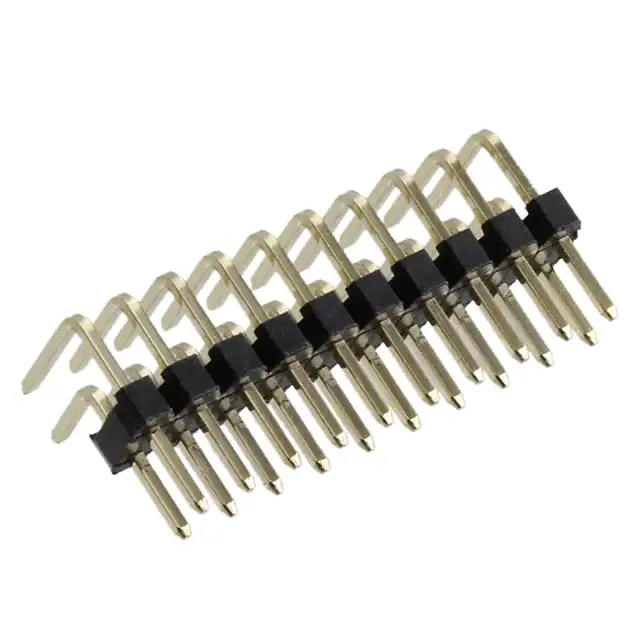

M22-2041005

M22-2041005
Harwin Inc.
CONN HEADER R/A 20POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch - Mating
0.079" (2.00mm)
Contact Finish Thickness - Post
-
Mounting Type
Through Hole, Right Angle
Insulation Height
0.157" (4.00mm)
Contact Material
Phosphor Bronze
Features
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Contact Length - Mating
0.138" (3.50mm)
Current Rating (Amps)
1A per Contact
Package
Bulk
Connector Type
Header, Cuttable
Contact Type
Male Pin
Contact Shape
Square
Insulation Color
Black
Product Status
Active
Number of Rows
2
Row Spacing - Mating
0.079" (2.00mm)
Overall Contact Length
-
Contact Finish Thickness - Mating
-
Applications
-
Fastening Type
Push-Pull
Insulation Material
Polyamide (PA6T), Nylon 6T
Voltage Rating
-
Shrouding
Unshrouded
Termination
Solder
Contact Finish - Mating
Gold
Contact Finish - Post
-
Mfr
Harwin Inc.
Number of Positions
20
Number of Positions Loaded
All
Style
Board to Board
Operating Temperature
-40°C ~ 105°C
Series
M22
Contact Length - Post
0.118" (3.00mm)
Mated Stacking Heights
-
Base Product Number
M22-204
