M22-2041605
M22-2041605
Favorite Products
Share:

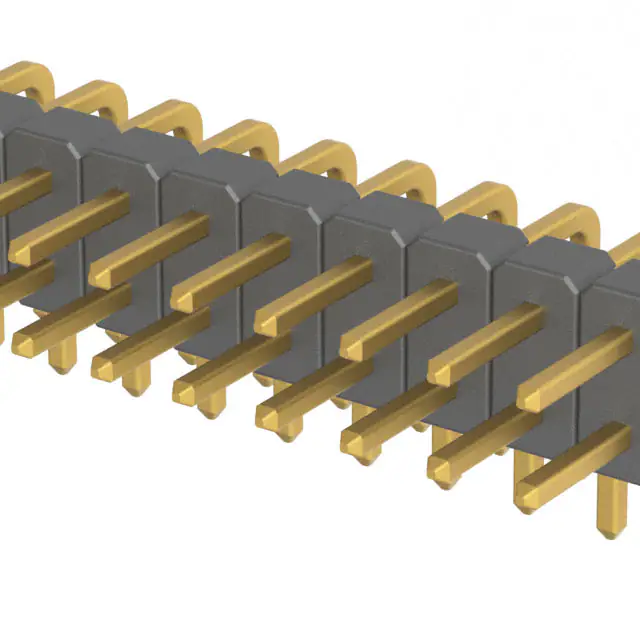

M22-2041605

M22-2041605
Harwin Inc.
CONN HEADER R/A 32POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Bulk
Pitch - Mating
0.079" (2.00mm)
Contact Length - Post
0.118" (3.00mm)
Material Flammability Rating
UL94 V-0
Style
Board to Board
Mated Stacking Heights
-
Termination
Solder
Contact Shape
Square
Contact Finish Thickness - Mating
-
Insulation Material
Polyamide (PA6T), Nylon 6T
Connector Type
Header, Cuttable
Overall Contact Length
-
Features
-
Applications
-
Series
M22
Contact Type
Male Pin
Row Spacing - Mating
0.079" (2.00mm)
Shrouding
Unshrouded
Contact Finish - Post
-
Contact Material
Phosphor Bronze
Operating Temperature
-40°C ~ 105°C
Voltage Rating
-
Number of Positions
32
Mounting Type
Through Hole, Right Angle
Fastening Type
Push-Pull
Insulation Color
Black
Mfr
Harwin Inc.
Number of Positions Loaded
All
Current Rating (Amps)
1A per Contact
Contact Finish Thickness - Post
-
Contact Length - Mating
0.138" (3.50mm)
Insulation Height
0.157" (4.00mm)
Number of Rows
2
Contact Finish - Mating
Gold
Base Product Number
M22-204
Product Status
Active
Ingress Protection
-
