M22-2510805
M22-2510805
M22-2510805
Favorite Products
Share:

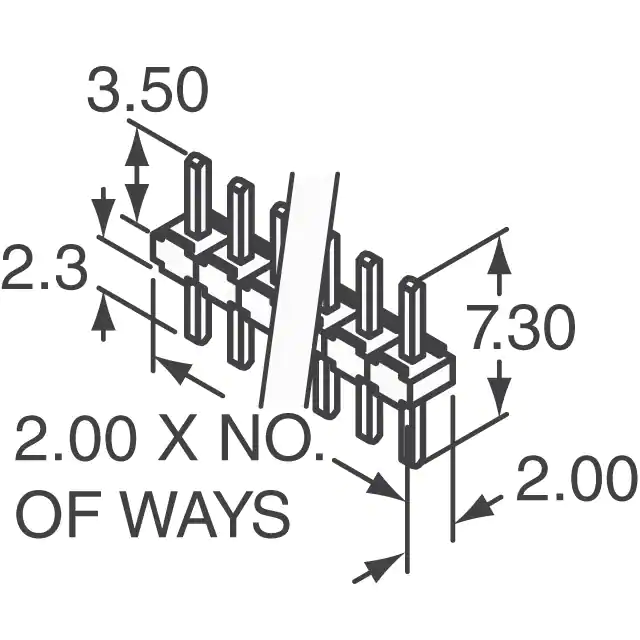

M22-2510805

M22-2510805
Harwin Inc.
CONN HEADER VERT 8POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Black
Product Status
Active
Contact Length - Post
0.091" (2.30mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions Loaded
All
Style
Board to Board
Fastening Type
Push-Pull
Ingress Protection
-
Series
M22
Connector Type
Header, Cuttable
Row Spacing - Mating
-
Shrouding
Unshrouded
Contact Finish - Mating
Gold
Contact Material
Phosphor Bronze
Insulation Height
0.059" (1.50mm)
Pitch - Mating
0.079" (2.00mm)
Number of Rows
1
Mated Stacking Heights
5.9mm, 8.6mm
Applications
-
Package
Bulk
Contact Finish - Post
-
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
1A per Contact
Contact Length - Mating
0.138" (3.50mm)
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Contact Finish Thickness - Post
-
Contact Type
Male Pin
Overall Contact Length
0.287" (7.30mm)
Base Product Number
M22-251
Mounting Type
Through Hole
Features
-
Mfr
Harwin Inc.
Number of Positions
8
Termination
Solder
Contact Finish Thickness - Mating
-
