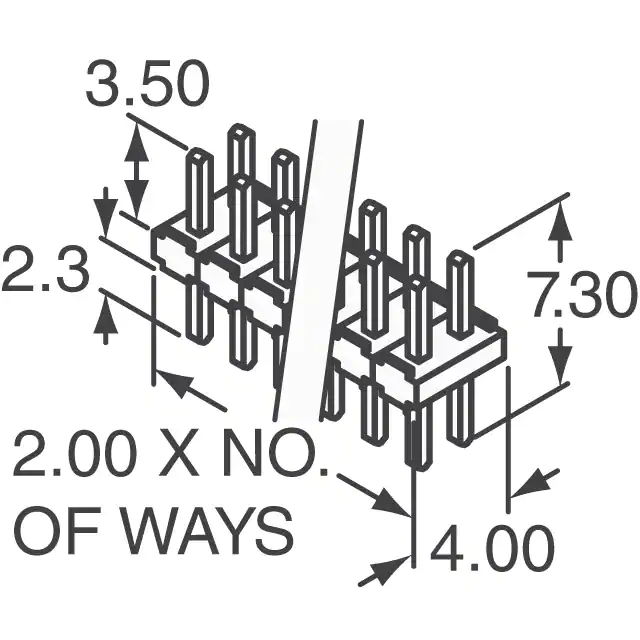

M22-2520405
M22-2520405
M22-2520405
Favorite Products
Share:

M22-2520405

M22-2520405
Harwin Inc.
CONN HEADER VERT 8POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Height
0.059" (1.50mm)
Shrouding
Unshrouded
Contact Finish - Post
-
Package
Bulk
Insulation Color
Black
Fastening Type
Push-Pull
Applications
-
Mfr
Harwin Inc.
Product Status
Active
Connector Type
Header, Cuttable
Pitch - Mating
0.079" (2.00mm)
Contact Shape
Square
Operating Temperature
-40°C ~ 105°C
Series
M22
Termination
Solder
Contact Length - Post
0.091" (2.30mm)
Ingress Protection
-
Contact Type
Male Pin
Features
-
Voltage Rating
-
Contact Finish Thickness - Post
-
Overall Contact Length
0.287" (7.30mm)
Base Product Number
M22-252
Number of Rows
2
Style
Board to Board
Mounting Type
Through Hole
Material Flammability Rating
UL94 V-0
Contact Finish - Mating
Gold
Mated Stacking Heights
3.8mm, 5.9mm, 8.6mm
Row Spacing - Mating
0.079" (2.00mm)
Contact Material
Phosphor Bronze
Insulation Material
Polyamide (PA6T), Nylon 6T
Current Rating (Amps)
1A per Contact
Number of Positions
8
Number of Positions Loaded
All
Contact Length - Mating
0.138" (3.50mm)
Contact Finish Thickness - Mating
-
