M22-2540505
M22-2540505
Favorite Products
Share:

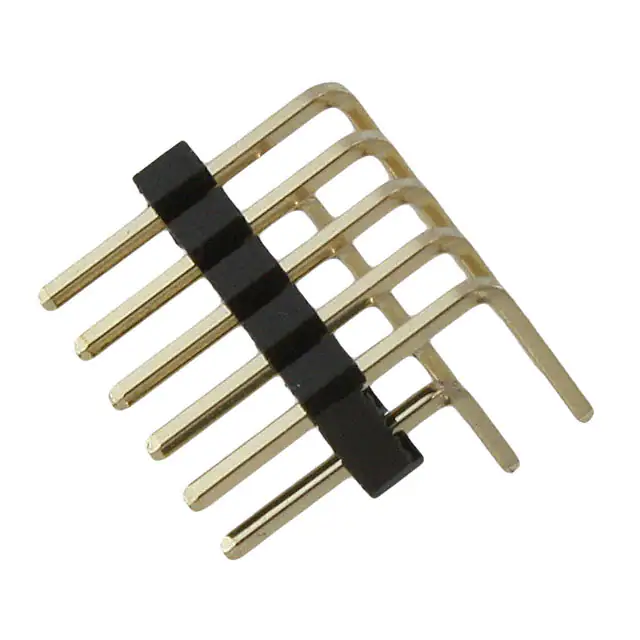

M22-2540505

M22-2540505
Harwin Inc.
CONN HEADER R/A 10POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Height
0.157" (4.00mm)
Applications
-
Contact Shape
Square
Fastening Type
Push-Pull
Mfr
Harwin Inc.
Number of Positions Loaded
All
Shrouding
Unshrouded
Contact Finish - Mating
Gold
Contact Finish - Post
-
Series
M22
Product Status
Active
Connector Type
Header, Cuttable
Overall Contact Length
-
Features
-
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness - Mating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Row Spacing - Mating
0.079" (2.00mm)
Contact Length - Mating
0.138" (3.50mm)
Contact Length - Post
0.094" (2.40mm)
Current Rating (Amps)
2A
Base Product Number
M22-254
Package
Bulk
Pitch - Mating
0.079" (2.00mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Voltage Rating
-
Contact Type
Male Pin
Number of Positions
10
Number of Rows
2
Style
Board to Board
Termination
Solder
Mounting Type
Through Hole, Right Angle
Contact Material
Phosphor Bronze
Ingress Protection
-
Insulation Color
Black
Mated Stacking Heights
-
