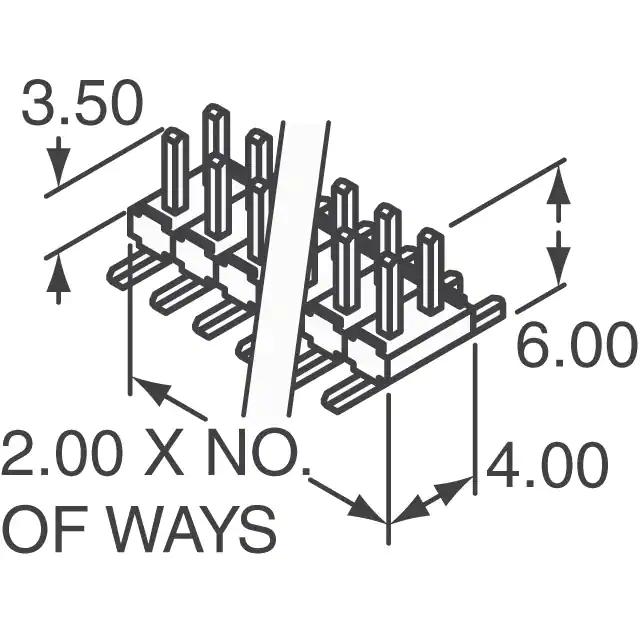

M22-5320605
M22-5320605
M22-5320605
Favorite Products
Share:

M22-5320605

M22-5320605
Harwin Inc.
CONN HEADER SMD 12POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
-
Series
M22
Termination
Solder
Contact Finish Thickness - Post
-
Shrouding
Unshrouded
Contact Shape
Square
Contact Finish Thickness - Mating
-
Base Product Number
M22-532
Style
Board to Board
Insulation Color
Black
Mfr
Harwin Inc.
Package
Bulk
Insulation Height
0.059" (1.50mm)
Current Rating (Amps)
1A per Contact
Product Status
Active
Contact Type
Male Pin
Mounting Type
Surface Mount
Contact Length - Post
-
Overall Contact Length
-
Voltage Rating
-
Applications
-
Connector Type
Header, Cuttable
Number of Positions Loaded
All
Contact Length - Mating
0.138" (3.50mm)
Operating Temperature
-40°C ~ 105°C
Ingress Protection
-
Mated Stacking Heights
4.6mm, 6.8mm
Number of Rows
2
Contact Finish - Post
-
Pitch - Mating
0.079" (2.00mm)
Row Spacing - Mating
0.079" (2.00mm)
Fastening Type
Push-Pull
Contact Material
Phosphor Bronze
Number of Positions
12
Contact Finish - Mating
Gold
Insulation Material
Polyamide (PA6T), Nylon 6T
Material Flammability Rating
UL94 V-0
