M22-5330705
M22-5330705
Favorite Products
Share:

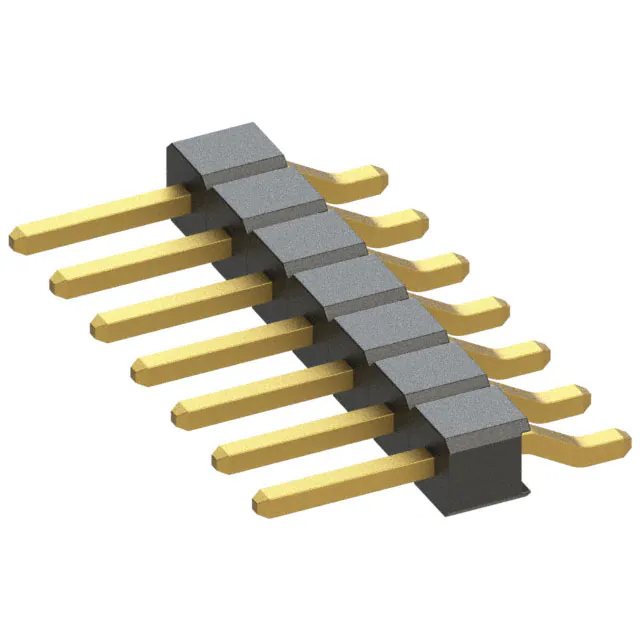

M22-5330705

M22-5330705
Harwin Inc.
CONN HEADER SMD R/A 7POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Number of Positions Loaded
All
Current Rating (Amps)
2A per Contact
Contact Material
Brass
Product Status
Obsolete
Contact Finish - Post
-
Number of Positions
7
Contact Finish - Mating
Gold
Insulation Color
Black
Mfr
Harwin Inc.
Contact Type
Male Pin
Mounting Type
Surface Mount, Right Angle
Operating Temperature
-40°C ~ 105°C
Voltage Rating
-
Package
Bulk
Pitch - Mating
0.079" (2.00mm)
Number of Rows
1
Fastening Type
Push-Pull
Material Flammability Rating
UL94 V-0
Applications
-
Overall Contact Length
-
Series
M22
Style
Board to Board or Cable
Ingress Protection
-
Row Spacing - Mating
-
Shrouding
Unshrouded
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Contact Length - Mating
0.165" (4.20mm)
Contact Length - Post
-
Insulation Height
0.079" (2.00mm)
Contact Finish Thickness - Mating
Flash
Insulation Material
Polyamide (PA6T), Nylon 6T
Features
-
Connector Type
Header, Cuttable
Termination
Solder
