M22-5330905
M22-5330905
Favorite Products
Share:

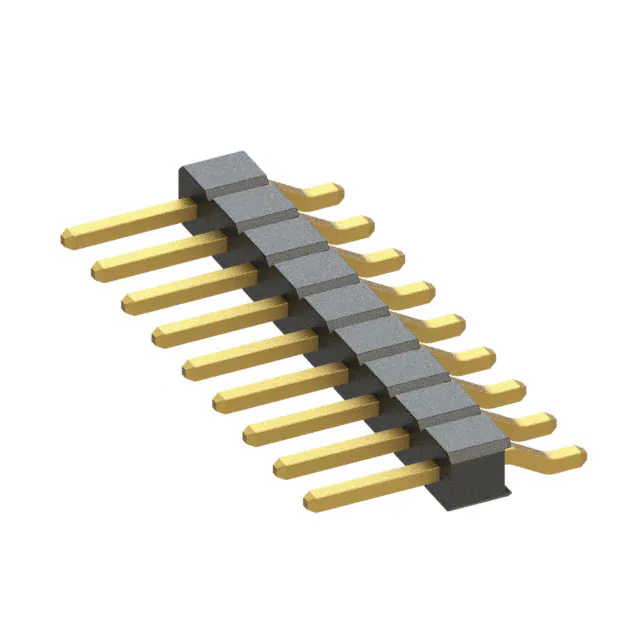

M22-5330905

M22-5330905
Harwin Inc.
CONN HEADER SMD R/A 9POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.165" (4.20mm)
Features
-
Mounting Type
Surface Mount, Right Angle
Contact Finish Thickness - Post
-
Product Status
Obsolete
Overall Contact Length
-
Material Flammability Rating
UL94 V-0
Contact Type
Male Pin
Number of Positions
9
Operating Temperature
-40°C ~ 105°C
Ingress Protection
-
Number of Rows
1
Insulation Height
0.079" (2.00mm)
Contact Finish - Post
-
Current Rating (Amps)
2A per Contact
Mated Stacking Heights
-
Applications
-
Mfr
Harwin Inc.
Package
Bulk
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
Flash
Connector Type
Header, Cuttable
Number of Positions Loaded
All
Shrouding
Unshrouded
Contact Length - Post
-
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Material
Polyamide (PA6T), Nylon 6T
Voltage Rating
-
Series
M22
Termination
Solder
Contact Shape
Square
Row Spacing - Mating
-
Style
Board to Board or Cable
Insulation Color
Black
