M22-5432005
M22-5432005
Favorite Products
Share:

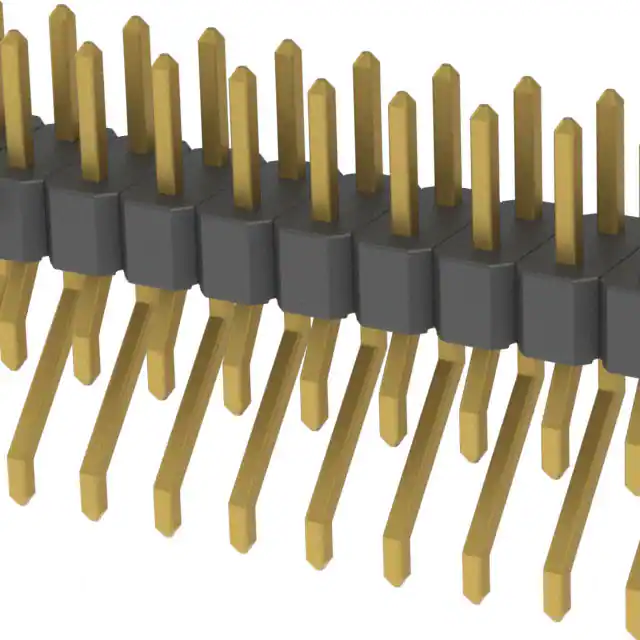

M22-5432005

M22-5432005
Harwin Inc.
CONN HEADER SMD R/A 40POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Male Pin
Contact Length - Post
-
Series
M22
Number of Positions
40
Style
Board to Board
Contact Length - Mating
0.126" (3.20mm)
Contact Shape
Square
Contact Finish Thickness - Post
-
Number of Positions Loaded
All
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Termination
Solder
Contact Finish - Mating
Gold
Insulation Material
Polyamide (PA6T), Nylon 6T
Ingress Protection
-
Mated Stacking Heights
-
Mfr
Harwin Inc.
Product Status
Active
Package
Bulk
Connector Type
Header, Cuttable
Mounting Type
Surface Mount, Right Angle
Features
Board Guide
Row Spacing - Mating
0.079" (2.00mm)
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
1.5A per Contact
Applications
-
Number of Rows
2
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
Flash
Insulation Color
Black
Pitch - Mating
0.079" (2.00mm)
Shrouding
Unshrouded
Overall Contact Length
-
Insulation Height
0.157" (4.00mm)
Contact Finish - Post
-
Voltage Rating
-
Base Product Number
M22-543
