M22-6361242
M22-6361242
Favorite Products
Share:

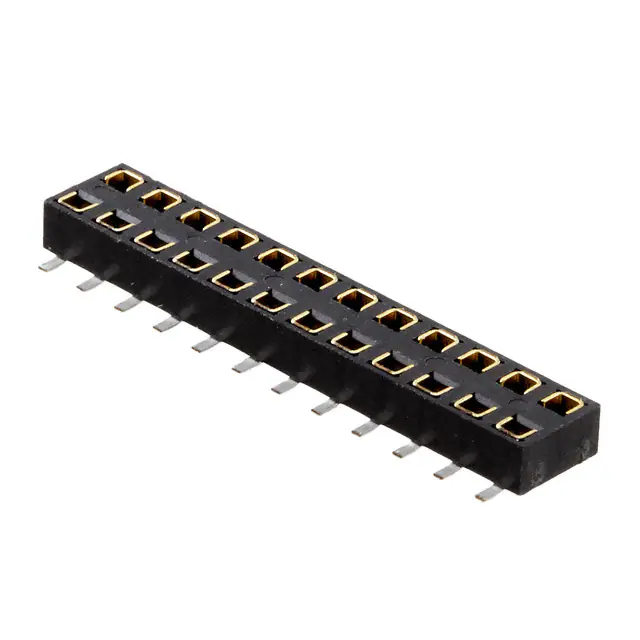

M22-6361242

M22-6361242
Harwin Inc.
CONN RCPT 24POS 0.079 GOLD SMD
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Mounting Type
Surface Mount
Mfr
Harwin Inc.
Current Rating (Amps)
2A
Number of Positions
24
Pitch - Mating
0.079" (2.00mm)
Series
M22
Package
Bulk
Insulation Height
0.079" (2.00mm)
Material Flammability Rating
UL94 V-0
Contact Shape
Square
Contact Type
Female Socket
Insulation Color
Black
Contact Finish - Post
Tin
Applications
General Purpose, Industrial, Telecommunications
Number of Rows
2
Contact Finish Thickness - Mating
Flash
Contact Length - Post
-
Contact Finish - Mating
Gold
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness - Post
-
Connector Type
Receptacle, Bottom or Top Entry
Style
Board to Board or Cable
Mated Stacking Heights
3.6mm, 4.35mm, 4.6mm
Voltage Rating
-
Product Status
Active
Row Spacing - Mating
0.079" (2.00mm)
Insulation Material
Polyamide (PA9T), Nylon 9T
Contact Material
Phosphor Bronze
Base Product Number
M22-636
Termination
Solder
Fastening Type
Push-Pull
Ingress Protection
-
Features
Board Guide
