M22-6550542R
M22-6550542R
Favorite Products
Share:

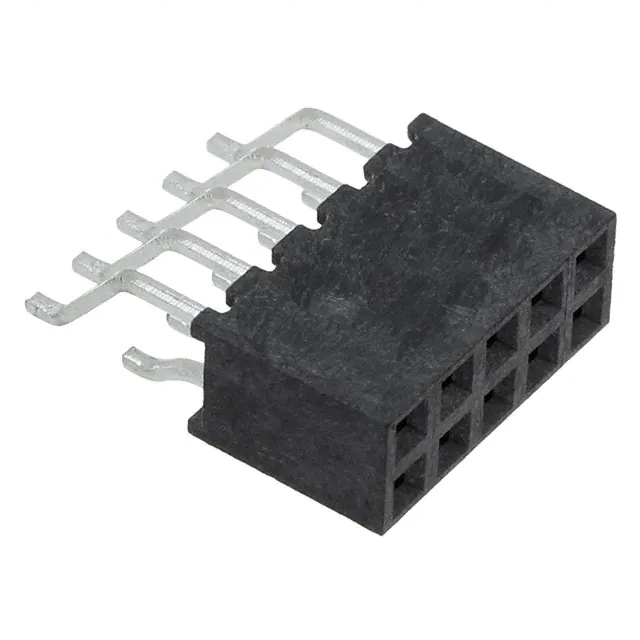

M22-6550542R

M22-6550542R
Harwin Inc.
CONN RCPT 10P 0.079 GOLD SMD R/A
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Receptacle
Mfr
Harwin Inc.
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Series
M22
Style
Board to Board
Product Status
Active
Number of Positions
10
Material Flammability Rating
UL94 V-0
Contact Material
Phosphor Bronze
Number of Positions Loaded
All
Ingress Protection
-
Features
-
Number of Rows
2
Termination
Solder
Contact Finish Thickness - Mating
0.59µin (0.015µm)
Insulation Color
Black
Insulation Height
0.157" (4.00mm)
Applications
General Purpose
Contact Shape
Square
Package
Tape & Reel (TR)^^Cut Tape (CT)
Mated Stacking Heights
-
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number
M22-655
Row Spacing - Mating
0.079" (2.00mm)
Voltage Rating
-
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Type
Forked
Pitch - Mating
0.079" (2.00mm)
Mounting Type
Surface Mount, Right Angle
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Length - Post
-
Operating Temperature
-40°C ~ 105°C
