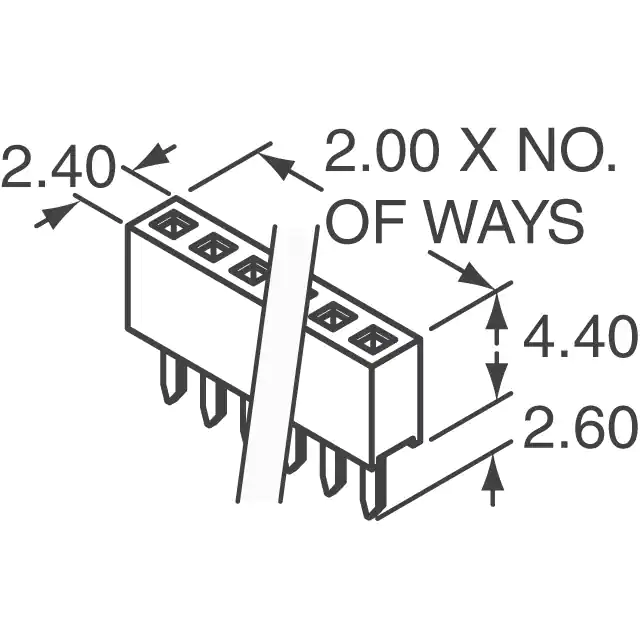

M22-7130342
M22-7130342
M22-7130342
M22-7130342
Favorite Products
Share:

M22-7130342

M22-7130342
Harwin Inc.
CONN RCPT 3POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
-
Number of Positions Loaded
All
Series
M22
Number of Rows
1
Mounting Type
Through Hole
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
5.9mm
Features
-
Contact Material
Phosphor Bronze
Style
Board to Board or Cable
Contact Finish - Mating
Gold
Base Product Number
M22-713
Connector Type
Receptacle
Insulation Color
Black
Package
Tube
Pitch - Mating
0.079" (2.00mm)
Ingress Protection
-
Mfr
Harwin Inc.
Number of Positions
3
Row Spacing - Mating
-
Material Flammability Rating
UL94 V-0
Insulation Height
0.173" (4.40mm)
Product Status
Active
Contact Finish - Post
Tin
Voltage Rating
500VAC
Contact Shape
Square
Contact Finish Thickness - Post
-
Contact Type
Female Socket
Fastening Type
Push-Pull
Contact Length - Post
0.094" (2.40mm)
Current Rating (Amps)
2A
Insulation Material
Liquid Crystal Polymer (LCP)
Termination
Solder
Applications
General Purpose, Industrial, Telecommunications
