M50-3530642
M50-3530642
Favorite Products
Share:

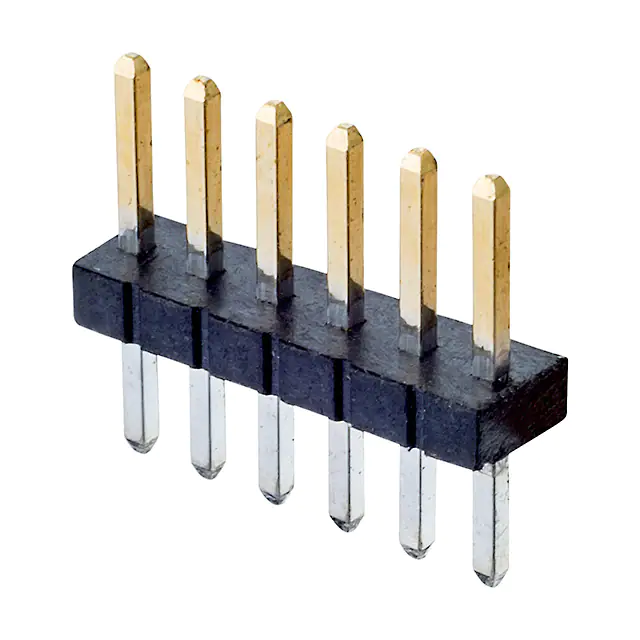

M50-3530642

M50-3530642
Harwin Inc.
CONN HEADER VERT 6POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.118" (3.00mm)
Shrouding
Unshrouded
Series
Archer M50
Contact Type
Male Pin
Number of Positions
6
Contact Length - Post
0.091" (2.30mm)
Contact Material
Brass
Voltage Rating
-
Row Spacing - Mating
-
Termination
Solder
Contact Finish - Mating
Gold
Features
-
Current Rating (Amps)
1A per Contact
Mated Stacking Heights
3.10mm, 4.60mm, 5.40mm
Applications
-
Package
Bulk
Number of Positions Loaded
All
Contact Finish Thickness - Mating
-
Mfr
Harwin Inc.
Insulation Color
Black
Product Status
Active
Number of Rows
1
Style
Board to Board
Overall Contact Length
0.248" (6.30mm)
Insulation Height
0.039" (1.00mm)
Material Flammability Rating
UL94 V-0
Fastening Type
Push-Pull
Connector Type
Header
Pitch - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Insulation Material
Polyamide (PA9T), Nylon 9T
Ingress Protection
-
Base Product Number
M50-353
Mounting Type
Through Hole
Contact Shape
Square
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness - Post
100.0µin (2.54µm)
