M50-3600942
M50-3600942
M50-3600942
M50-3600942
Favorite Products
Share:

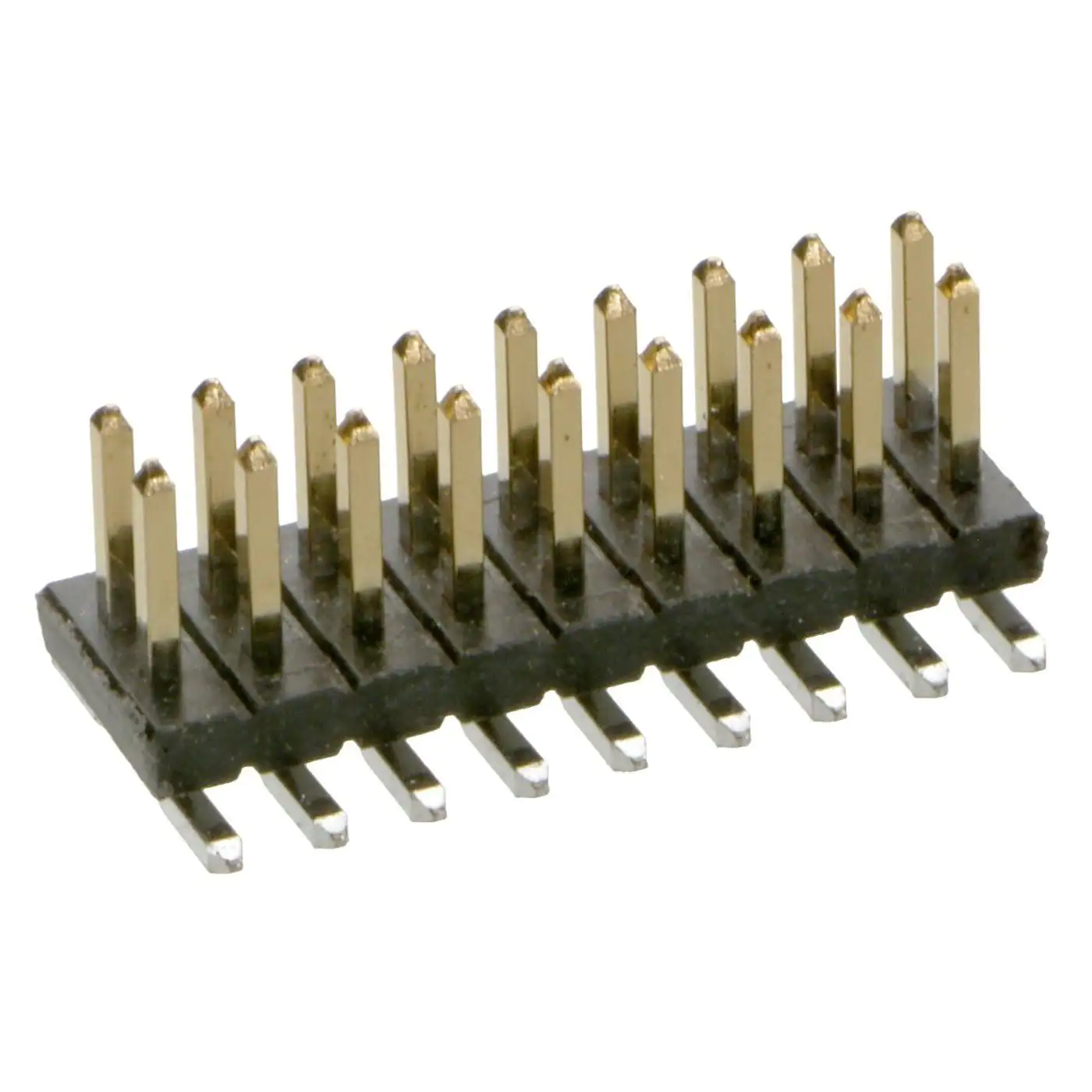

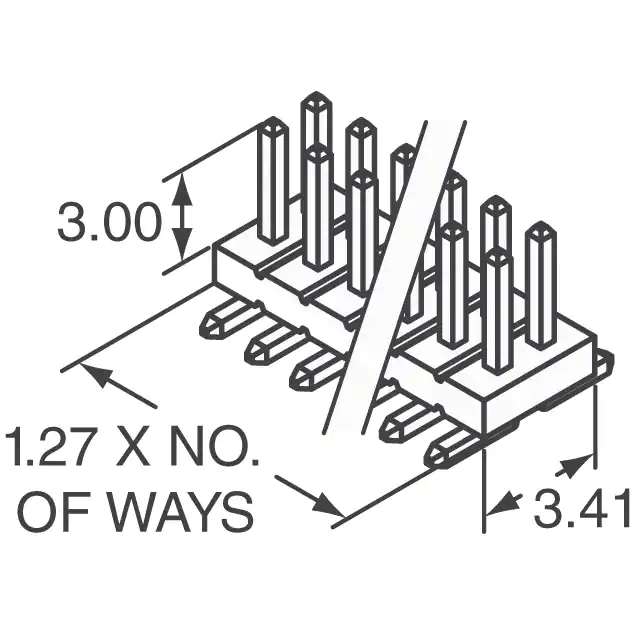

M50-3600942

M50-3600942
Harwin Inc.
CONN HEADER SMD 18POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
98.4µin (2.50µm)
Package
Bulk
Pitch - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Overall Contact Length
-
Contact Shape
Square
Contact Finish - Mating
Gold
Insulation Material
Thermoplastic
Ingress Protection
-
Current Rating (Amps)
1A
Contact Length - Mating
0.118" (3.00mm)
Operating Temperature
-40°C ~ 105°C
Product Status
Active
Connector Type
Header
Mounting Type
Surface Mount
Insulation Height
0.039" (1.00mm)
Insulation Color
Black
Voltage Rating
-
Applications
-
Base Product Number
M50-360
Mfr
Harwin Inc.
Series
Archer M50
Fastening Type
Push-Pull
Number of Positions
18
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Post
-
Contact Finish Thickness - Mating
3.00µin (0.076µm)
Contact Material
Copper Alloy
Number of Rows
2
Shrouding
Unshrouded
Contact Finish - Post
Tin
Contact Type
Male Pin
Number of Positions Loaded
All
Features
-
Mated Stacking Heights
3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
