M50-3611542
M50-3611542
Favorite Products
Share:

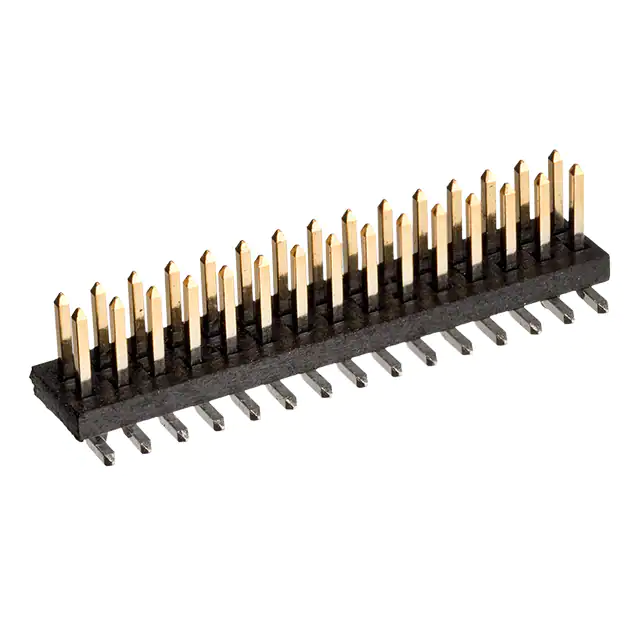

M50-3611542

M50-3611542
Harwin Inc.
CONN HEADER SMD 30POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Current Rating (Amps)
1A
Style
Board to Board or Cable
Fastening Type
Push-Pull
Mfr
Harwin Inc.
Overall Contact Length
-
Insulation Height
0.039" (1.00mm)
Product Status
Active
Contact Type
Male Pin
Mounting Type
Surface Mount
Base Product Number
M50-361
Number of Positions Loaded
All
Termination
Solder
Contact Length - Post
-
Contact Shape
Square
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Mating
0.118" (3.00mm)
Contact Material
Brass
Voltage Rating
250V
Contact Finish Thickness - Post
80.0µin (2.03µm)
Pitch - Mating
0.050" (1.27mm)
Number of Rows
2
Contact Finish Thickness - Mating
1.00µin (0.025µm)
Series
Archer M50
Contact Finish - Mating
Gold
Insulation Material
Thermoplastic
Insulation Color
Black
Number of Positions
30
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Applications
-
Package
Bulk
Connector Type
Header
Shrouding
Unshrouded
Contact Finish - Post
Tin
Features
Board Guide
Mated Stacking Heights
3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
