M50-3630442
M50-3630442
Favorite Products
Share:

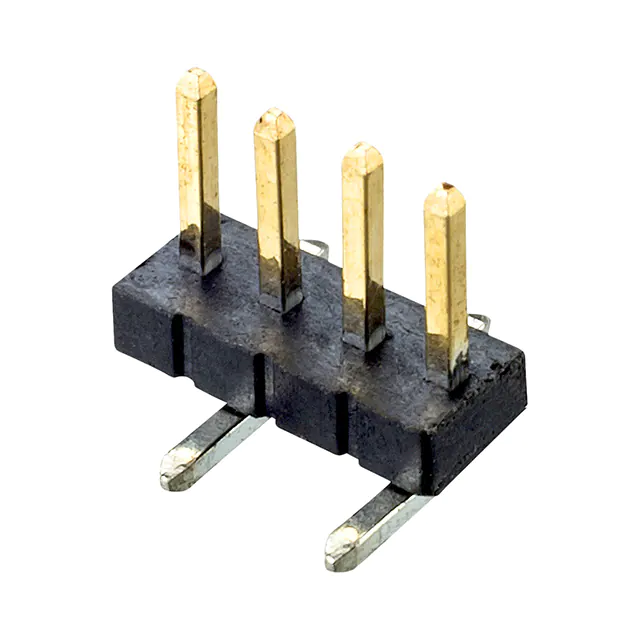

M50-3630442

M50-3630442
Harwin Inc.
CONN HEADER SMD 4POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Mating
Gold
Applications
-
Pitch - Mating
0.050" (1.27mm)
Style
Board to Board
Overall Contact Length
-
Insulation Material
Polyamide (PA9T), Nylon 9T
Operating Temperature
-40°C ~ 105°C
Base Product Number
M50-363
Product Status
Active
Connector Type
Header
Number of Positions Loaded
All
Contact Length - Post
-
Contact Finish Thickness - Mating
-
Features
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
1A per Contact
Package
Tube
Mounting Type
Surface Mount
Row Spacing - Mating
-
Termination
Solder
Fastening Type
Push-Pull
Ingress Protection
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions
4
Series
Archer M50
Number of Rows
1
Shrouding
Unshrouded
Contact Shape
Square
Contact Finish - Post
Tin
Contact Material
Brass
Mfr
Harwin Inc.
Insulation Height
0.039" (1.00mm)
Mated Stacking Heights
3.60mm, 5.10mm, 5.90mm
Contact Type
Male Pin
Contact Length - Mating
0.118" (3.00mm)
Voltage Rating
-
