M50-3630542R
M50-3630542R
Favorite Products
Share:

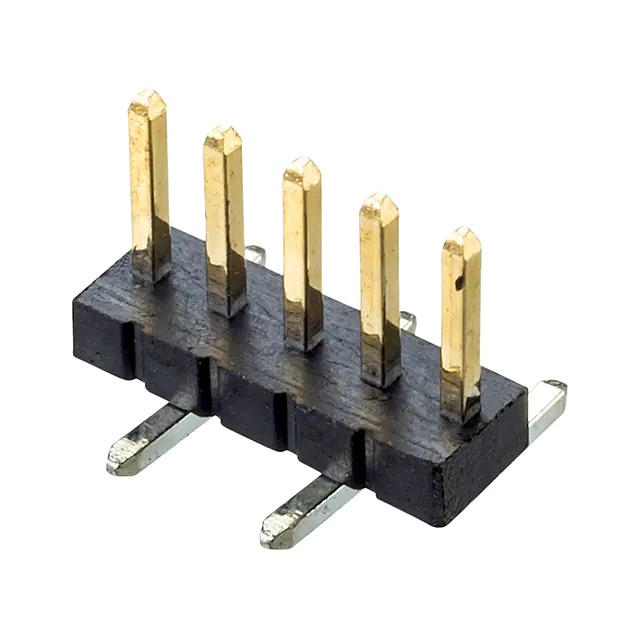

M50-3630542R

M50-3630542R
Harwin Inc.
CONN HEADER SMD 5POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Overall Contact Length
-
Contact Type
Male Pin
Insulation Material
Polyamide (PA9T), Nylon 9T
Voltage Rating
-
Series
Archer M50
Connector Type
Header
Number of Rows
1
Current Rating (Amps)
1A per Contact
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
M50-363
Pitch - Mating
0.050" (1.27mm)
Row Spacing - Mating
-
Insulation Height
0.039" (1.00mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Features
Pick and Place
Applications
-
Number of Positions Loaded
All
Shrouding
Unshrouded
Termination
Solder
Number of Positions
5
Contact Length - Mating
0.118" (3.00mm)
Contact Length - Post
-
Contact Finish - Post
Tin
Insulation Color
Black
Contact Material
Brass
Mated Stacking Heights
3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
Mfr
Harwin Inc.
Package
Tape & Reel (TR)^^Cut Tape (CT)
Style
Board to Board
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 105°C
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Product Status
Active
