M80-4051201
M80-4051201
Favorite Products
Share:

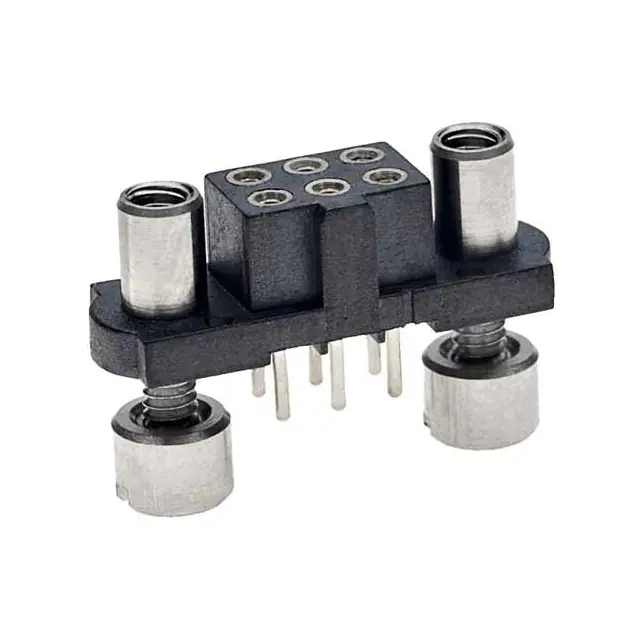

M80-4051201

M80-4051201
Harwin Inc.
CONN RCPT 12POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Height
0.204" (5.17mm)
Material Flammability Rating
UL94 V-0
Contact Type
Female Socket
Style
Board to Board or Cable
Number of Positions
12
Mounting Type
Through Hole
Applications
Automotive, General Purpose, Military
Contact Material
Beryllium Copper
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Contact Length - Post
0.118" (3.00mm)
Contact Shape
Circular
Contact Finish Thickness - Post
137.8µin (3.50µm)
Insulation Color
Black
Contact Finish - Post
Tin-Lead
Mated Stacking Heights
7.3mm, 7.55mm
Features
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Voltage Rating
800V
Product Status
Active
Package
Tube
Number of Positions Loaded
All
Number of Rows
2
Contact Finish - Mating
Gold
Mfr
Harwin Inc.
Series
Datamate J-Tek
Termination
Solder
Fastening Type
Screw Lock
Ingress Protection
-
Connector Type
Receptacle
Operating Temperature
-55°C ~ 125°C
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Base Product Number
M80-405
Pitch - Mating
0.079" (2.00mm)
Current Rating (Amps)
-
