M80-5001642
M80-5001642
Favorite Products
Share:

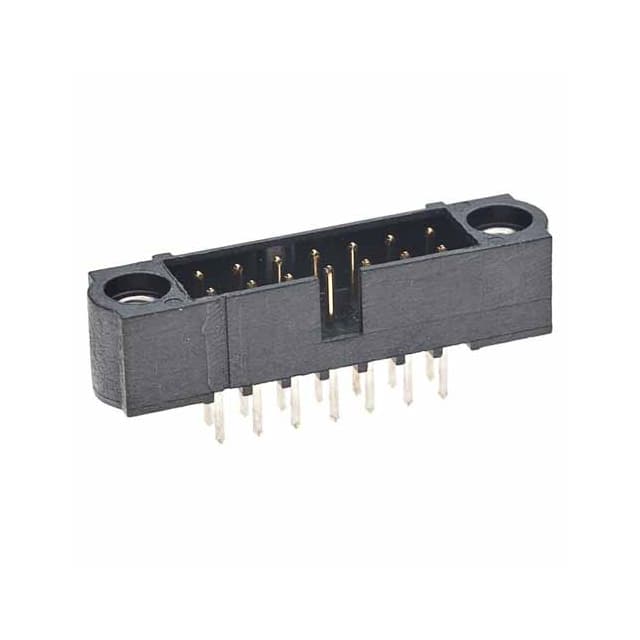

M80-5001642

M80-5001642
Harwin Inc.
CONN HEADER VERT 16POS 2MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Fastening Type
Threaded
Series
Datamate J-Tek
Contact Length - Mating
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Style
Board to Board or Cable
Contact Finish - Post
Tin
Features
Keying Slot, Mating Flange
Package
Tube
Contact Type
Male Pin
Number of Positions Loaded
All
Termination
Solder
Contact Shape
Circular
Contact Material
Phosphor Bronze
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature
-55°C ~ 125°C
Pitch - Mating
0.079" (2.00mm)
Number of Positions
16
Mounting Type
Through Hole
Insulation Height
0.220" (5.60mm)
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Contact Finish Thickness - Post
118.1µin (3.00µm)
Product Status
Active
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Mating
Gold
Voltage Rating
120V
Applications
-
Base Product Number
M80-500
Shrouding
Shrouded - 4 Wall
Contact Length - Post
0.128" (3.25mm)
Overall Contact Length
-
Current Rating (Amps)
2.2A per Contact
Mfr
Harwin Inc.
Number of Rows
2
Mated Stacking Heights
7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
