M80-5101022
M80-5101022
M80-5101022
Favorite Products
Share:

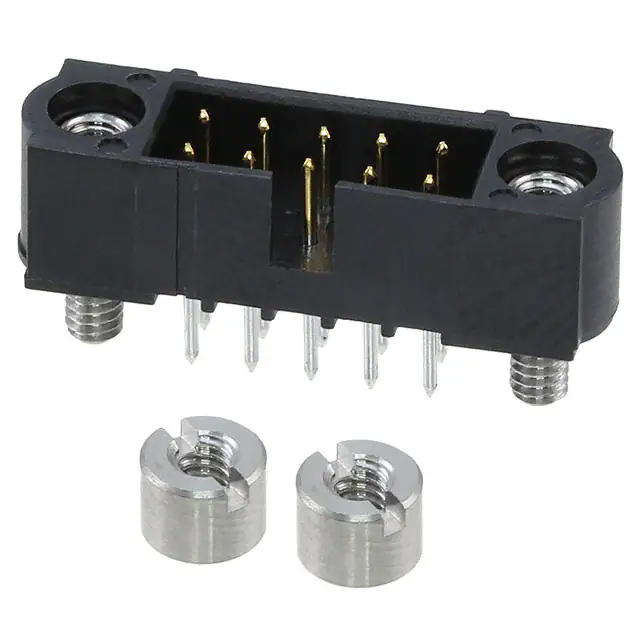

M80-5101022

M80-5101022
Harwin Inc.
CONN HEADER VERT 10POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
0.130" (3.30mm)
Material Flammability Rating
UL94 V-0
Applications
-
Shrouding
Shrouded - 4 Wall
Insulation Height
0.220" (5.60mm)
Contact Material
Phosphor Bronze
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Ingress Protection
-
Mated Stacking Heights
7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Contact Finish Thickness - Post
118.1µin (3.00µm)
Base Product Number
M80-510
Mfr
Harwin Inc.
Contact Type
Male Pin
Current Rating (Amps)
2.2A
Number of Positions
10
Row Spacing - Mating
0.079" (2.00mm)
Termination
Solder
Contact Finish - Mating
Gold
Connector Type
Header
Style
Board to Board or Cable
Mounting Type
Through Hole
Fastening Type
Threaded
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Series
Datamate J-Tek
Pitch - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin-Lead
Operating Temperature
-55°C ~ 125°C
Product Status
Active
Contact Shape
Circular
Insulation Color
Black
Voltage Rating
800V
Number of Rows
2
Overall Contact Length
-
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Package
Tube
Number of Positions Loaded
All
Contact Length - Mating
-
