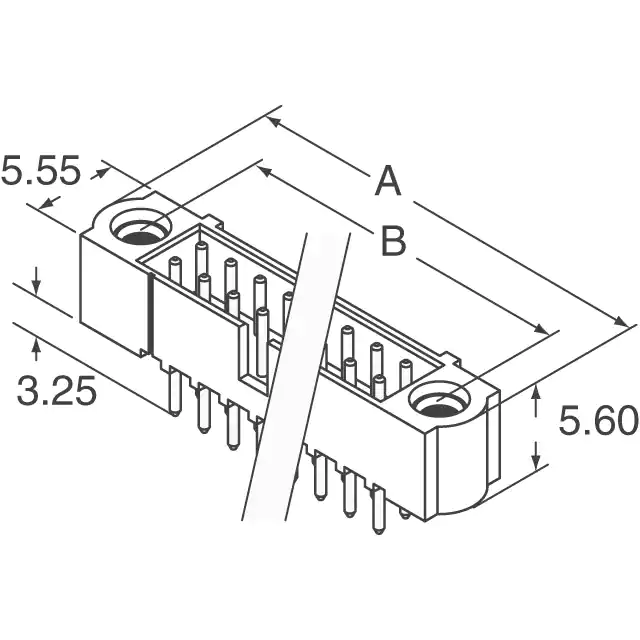

M80-5101822
M80-5101822
M80-5101822
Favorite Products
Share:

M80-5101822

M80-5101822
Harwin Inc.
CONN HEADER VERT 18POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Tube
Row Spacing - Mating
0.079" (2.00mm)
Contact Length - Mating
-
Fastening Type
Threaded
Base Product Number
M80-510
Connector Type
Header
Pitch - Mating
0.079" (2.00mm)
Current Rating (Amps)
2.2A
Series
Datamate J-Tek
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Applications
-
Mfr
Harwin Inc.
Contact Finish - Post
Tin-Lead
Ingress Protection
-
Insulation Color
Black
Number of Rows
2
Termination
Solder
Product Status
Active
Contact Length - Post
0.130" (3.30mm)
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Number of Positions
18
Mounting Type
Through Hole
Voltage Rating
800V
Mated Stacking Heights
7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Number of Positions Loaded
All
Overall Contact Length
-
Insulation Height
0.220" (5.60mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Contact Material
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Type
Male Pin
Contact Shape
Circular
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature
-55°C ~ 125°C
