M80-5111042
M80-5111042
Favorite Products
Share:

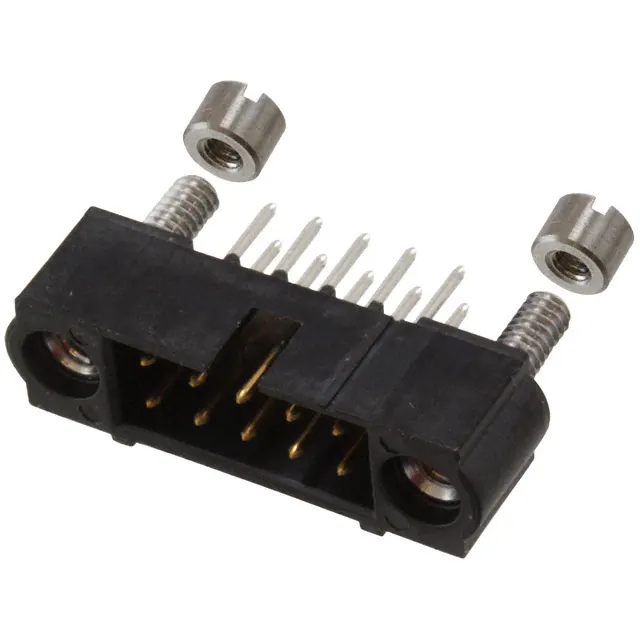

M80-5111042

M80-5111042
Harwin Inc.
CONN HEADER VERT 10POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Contact Type
Male Pin
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
118.1µin (3.00µm)
Row Spacing - Mating
0.079" (2.00mm)
Overall Contact Length
-
Contact Shape
Circular
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Number of Positions Loaded
All
Termination
Solder
Contact Material
Phosphor Bronze
Current Rating (Amps)
2.2A
Applications
-
Product Status
Active
Mfr
Harwin Inc.
Fastening Type
Threaded
Contact Length - Post
0.173" (4.40mm)
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Insulation Color
Black
Base Product Number
M80-511
Number of Positions
10
Contact Length - Mating
-
Insulation Height
0.220" (5.60mm)
Ingress Protection
-
Mated Stacking Heights
7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Series
Datamate J-Tek
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Mounting Type
Through Hole
Package
Tube
Style
Board to Board or Cable
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Voltage Rating
800V
