M80-5111842
M80-5111842
M80-5111842
Favorite Products
Share:

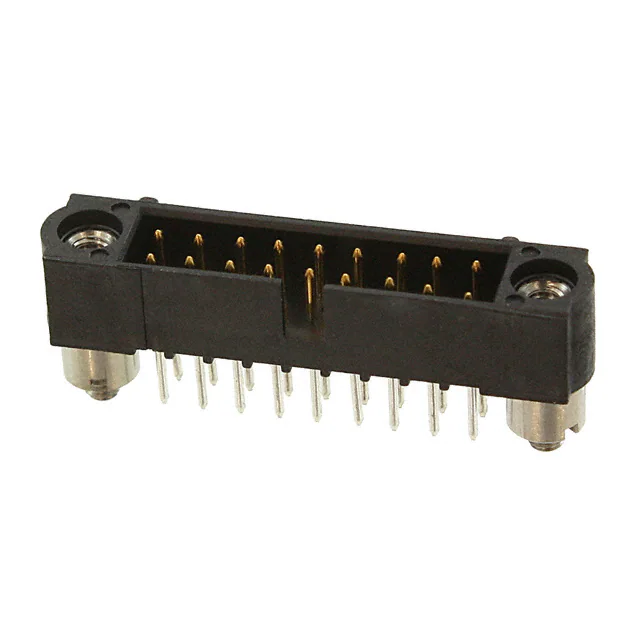

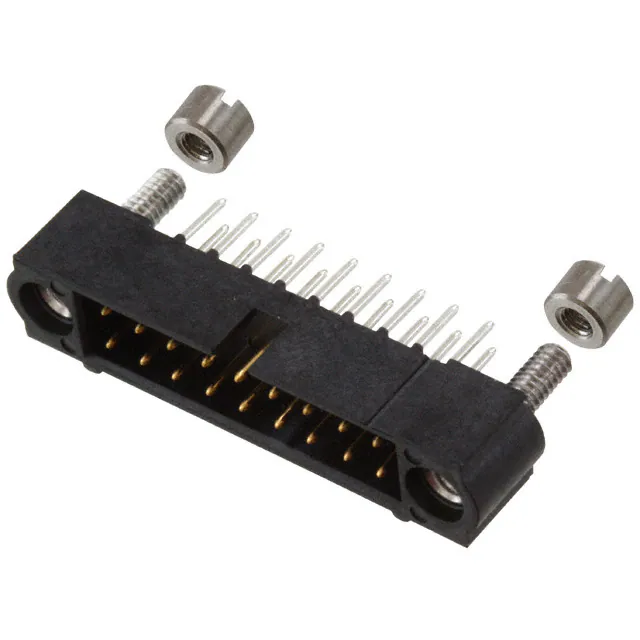

M80-5111842

M80-5111842
Harwin Inc.
CONN HEADER VERT 18POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Fastening Type
Threaded
Insulation Height
0.220" (5.60mm)
Mated Stacking Heights
7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Contact Material
Phosphor Bronze
Contact Type
Male Pin
Termination
Solder
Contact Length - Mating
-
Contact Shape
Circular
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Ingress Protection
-
Base Product Number
M80-511
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Mfr
Harwin Inc.
Series
Datamate J-Tek
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Voltage Rating
800V
Contact Finish Thickness - Post
118.1µin (3.00µm)
Connector Type
Header
Mounting Type
Through Hole
Current Rating (Amps)
2.2A
Package
Tube
Row Spacing - Mating
0.079" (2.00mm)
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Number of Positions Loaded
All
Contact Length - Post
0.173" (4.40mm)
Applications
-
Number of Rows
2
Operating Temperature
-55°C ~ 125°C
Insulation Color
Black
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Number of Positions
18
Style
Board to Board or Cable
