M80-5131442
M80-5131442
Favorite Products
Share:

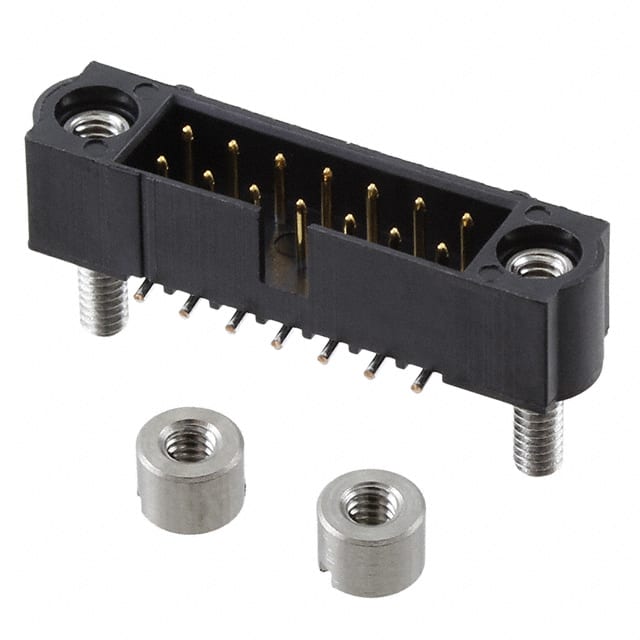

M80-5131442

M80-5131442
Harwin Inc.
CONN HEADER SMD 14POS 2MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Black
Mated Stacking Heights
7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm
Number of Rows
2
Operating Temperature
-55°C ~ 125°C
Insulation Height
0.234" (5.95mm)
Pitch - Mating
0.079" (2.00mm)
Row Spacing - Mating
0.079" (2.00mm)
Mounting Type
Surface Mount
Fastening Type
Threaded
Contact Length - Post
-
Overall Contact Length
-
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Contact Finish - Post
Tin
Ingress Protection
-
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Material Flammability Rating
UL94 V-0
Voltage Rating
800V
Series
Datamate J-Tek
Connector Type
Header
Style
Board to Board or Cable
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Shape
Circular
Applications
-
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Contact Finish Thickness - Post
118.1µin (3.00µm)
Base Product Number
M80-513
Product Status
Active
Termination
Solder
Contact Material
Phosphor Bronze
Mfr
Harwin Inc.
Contact Finish - Mating
Gold
Package
Tube
Number of Positions
14
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Current Rating (Amps)
2.2A
