M80-5301022
M80-5301022
Favorite Products
Share:

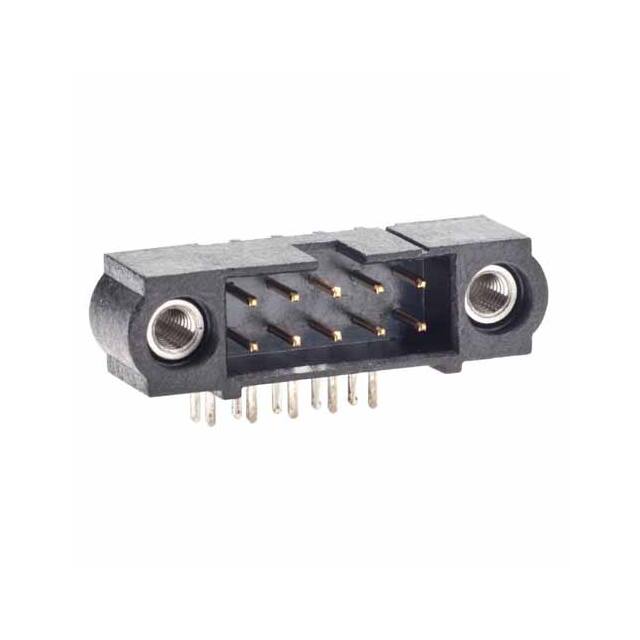

M80-5301022

M80-5301022
Harwin Inc.
CONN HEADER R/A 10POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Circular
Pitch - Mating
0.079" (2.00mm)
Contact Material
Phosphor Bronze
Ingress Protection
-
Contact Length - Mating
-
Contact Type
Male Pin
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
2.2A
Row Spacing - Mating
0.079" (2.00mm)
Fastening Type
Threaded
Contact Finish - Post
Tin-Lead
Features
Keying Slot, Mating Flange
Voltage Rating
800V
Series
Datamate J-Tek
Product Status
Active
Insulation Color
Black
Connector Type
Header
Number of Positions
10
Style
Board to Board or Cable
Mounting Type
Through Hole, Right Angle
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Package
Tube
Number of Rows
2
Contact Finish Thickness - Post
118.1µin (3.00µm)
Applications
-
Base Product Number
M80-530
Mfr
Harwin Inc.
Shrouding
Shrouded - 4 Wall
Contact Length - Post
0.118" (3.00mm)
Overall Contact Length
-
Insulation Height
0.218" (5.55mm)
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Termination
Solder
