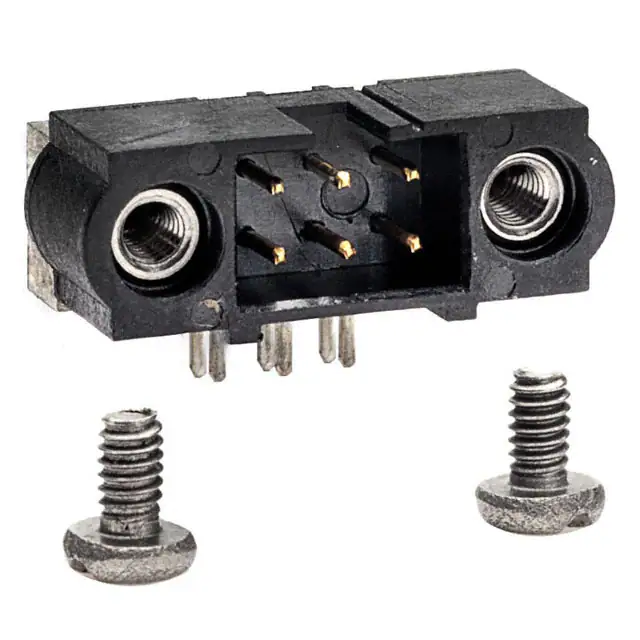

M80-5400642

M80-5400642
Harwin Inc.
CONN HEADER R/A 6POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder
Ingress Protection
-
Number of Positions Loaded
All
Voltage Rating
800V
Mfr
Harwin Inc.
Series
Datamate J-Tek
Overall Contact Length
-
Contact Material
Phosphor Bronze
Package
Tube
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature
-55°C ~ 125°C
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Type
Male Pin
Number of Rows
2
Row Spacing - Mating
0.079" (2.00mm)
Fastening Type
Threaded
Contact Length - Post
0.118" (3.00mm)
Contact Shape
Circular
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Applications
-
Insulation Color
Black
Current Rating (Amps)
2.2A
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Contact Finish - Mating
Gold
Base Product Number
M80-540
Style
Board to Board or Cable
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Material Flammability Rating
UL94 V-0
Number of Positions
6
Insulation Height
0.218" (5.55mm)
Mated Stacking Heights
-
