M80-5420605
M80-5420605
Favorite Products
Share:

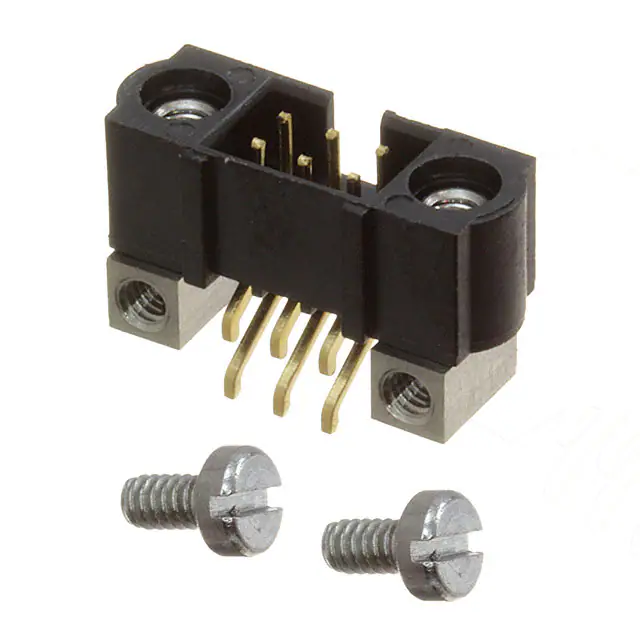

M80-5420605

M80-5420605
Harwin Inc.
DATAMATE J-TEK DIL MALE HORIZONT
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Package
Tube
Product Status
Active
Row Spacing - Mating
0.079" (2.00mm)
Number of Positions Loaded
All
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Contact Type
Male Pin
Pitch - Mating
0.079" (2.00mm)
Fastening Type
Threaded
Style
Board to Board or Cable
Overall Contact Length
-
Contact Finish - Mating
Gold
Insulation Color
Black
Connector Type
Header
Mounting Type
Surface Mount, Right Angle
Contact Length - Mating
-
Ingress Protection
-
Applications
-
Contact Shape
Circular
Number of Rows
2
Mated Stacking Heights
-
Series
Datamate J-Tek
Shrouding
Shrouded - 4 Wall
Contact Material
Copper Alloy
Operating Temperature
-55°C ~ 125°C
Contact Finish Thickness - Post
29.5µin (0.75µm)
Mfr
Harwin Inc.
Insulation Height
0.218" (5.55mm)
Material Flammability Rating
UL94 V-0
Number of Positions
6
Termination
Solder
Contact Length - Post
-
Current Rating (Amps)
2.2A
Voltage Rating
800VAC/DC
Contact Finish - Post
Gold
Base Product Number
M80-542
