M80-5430405
M80-5430405
Favorite Products
Share:

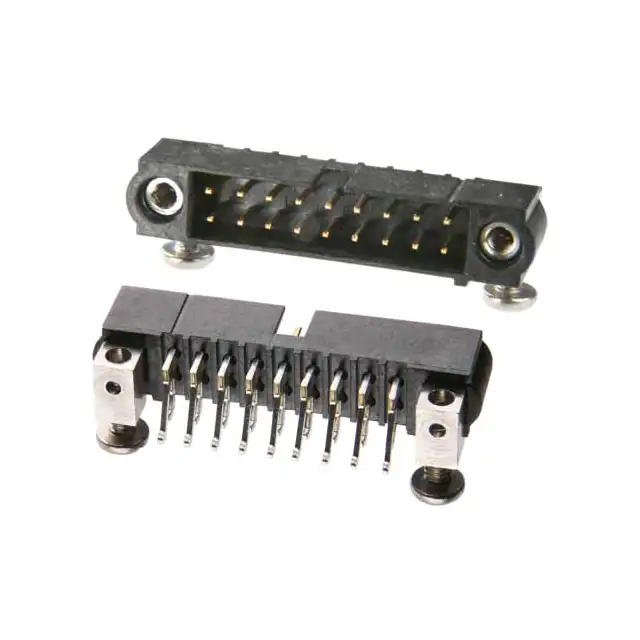

M80-5430405

M80-5430405
Harwin Inc.
DATAMATE J-TEK DIL MALE HORIZONT
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mounting Type
Surface Mount, Right Angle
Contact Shape
Circular
Applications
-
Number of Positions Loaded
All
Style
Board to Board or Cable
Termination
Solder
Insulation Height
0.220" (5.60mm)
Material Flammability Rating
UL94 V-0
Base Product Number
M80-543
Contact Type
Male Pin
Overall Contact Length
-
Contact Finish - Post
Gold
Operating Temperature
-55°C ~ 125°C
Series
Datamate J-Tek
Number of Rows
2
Voltage Rating
800VAC/DC
Mfr
Harwin Inc.
Package
Tube
Number of Positions
4
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Pitch - Mating
0.079" (2.00mm)
Current Rating (Amps)
2.2A
Row Spacing - Mating
0.079" (2.00mm)
Shrouding
Shrouded - 4 Wall
Fastening Type
Threaded
Contact Length - Mating
-
Contact Length - Post
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Mated Stacking Heights
-
Connector Type
Header
Features
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Contact Finish Thickness - Post
29.5µin (0.75µm)
Product Status
Active
Contact Material
Copper Alloy
Ingress Protection
-
Insulation Color
Black
