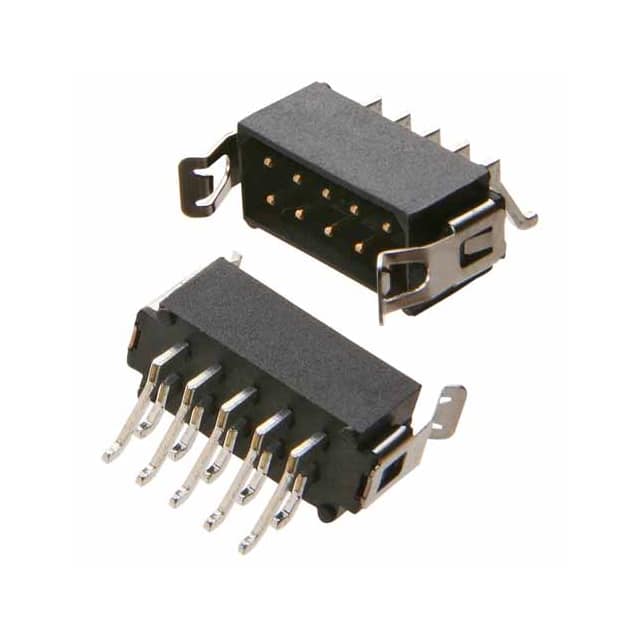

M80-6661222
M80-6661222
Favorite Products
Share:

M80-6661222

M80-6661222
Harwin Inc.
CONN HEADER SMD R/A 12POS 2MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
M80-666
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Series
Datamate L-Tek
Contact Finish - Mating
Gold
Style
Board to Board or Cable
Contact Finish Thickness - Post
118.1µin (3.00µm)
Pitch - Mating
0.079" (2.00mm)
Fastening Type
Latch Lock
Contact Material
Brass
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Package
Tube
Number of Positions
12
Overall Contact Length
-
Insulation Height
0.235" (5.97mm)
Applications
-
Mfr
Harwin Inc.
Product Status
Active
Number of Rows
2
Mounting Type
Surface Mount, Right Angle
Features
Strain Relief Clips
Ingress Protection
-
Mated Stacking Heights
-
Contact Type
Male Pin
Number of Positions Loaded
All
Termination
Solder
Contact Finish - Post
Tin-Lead
Operating Temperature
-55°C ~ 125°C
Voltage Rating
800V
Contact Length - Post
-
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
2.2A
Row Spacing - Mating
0.079" (2.00mm)
Contact Shape
Circular
Insulation Color
Black
