M80-6811645
M80-6811645
Favorite Products
Share:

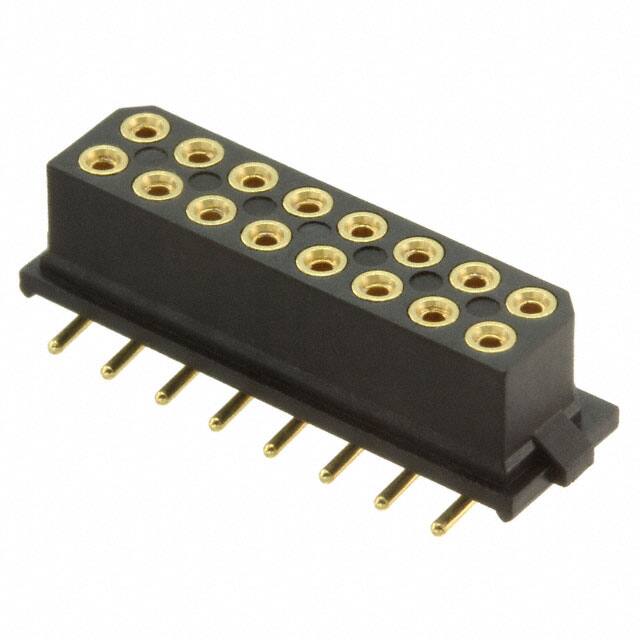

M80-6811645

M80-6811645
Harwin Inc.
CONN RCPT 16POS 0.079 GOLD SMD
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Fastening Type
Locking Ramp
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Voltage Rating
120V
Row Spacing - Mating
0.079" (2.00mm)
Applications
Automotive, General Purpose, Military
Mounting Type
Surface Mount
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Package
Tube
Contact Shape
Circular
Contact Material
Beryllium Copper
Base Product Number
M80-681
Number of Positions Loaded
All
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Contact Finish - Post
Gold
Mfr
Harwin Inc.
Connector Type
Receptacle
Number of Positions
16
Contact Finish Thickness - Post
12.0µin (0.30µm)
Series
Datamate L-Tek
Contact Type
Female Socket
Number of Rows
2
Contact Length - Post
-
Product Status
Active
Insulation Color
Black
Insulation Height
0.220" (5.60mm)
Mated Stacking Heights
7.85mm, 8.45mm
Features
-
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Pitch - Mating
0.079" (2.00mm)
Termination
Solder
Current Rating (Amps)
-
