M80-7034522
M80-7034522
Favorite Products
Share:

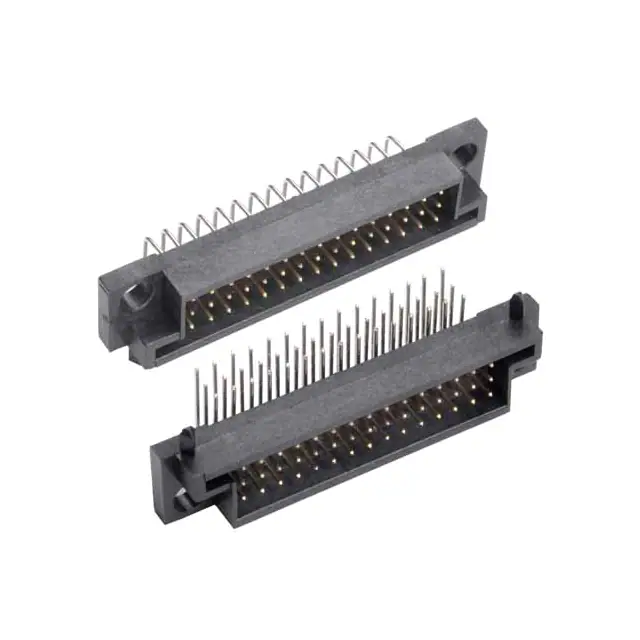

M80-7034522

M80-7034522
Harwin Inc.
CONN HEADER R/A 45POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Ingress Protection
-
Applications
-
Overall Contact Length
-
Voltage Rating
120V
Pitch - Mating
0.079" (2.00mm)
Insulation Height
0.358" (9.10mm)
Contact Shape
Circular
Package
Tray
Contact Type
Male Pin
Contact Material
Copper Alloy
Product Status
Active
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Insulation Color
Black
Current Rating (Amps)
2.2A
Number of Positions
45
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Length - Post
0.091" (2.30mm)
Material Flammability Rating
UL94 V-0
Mfr
Harwin Inc.
Number of Rows
3
Style
Board to Board or Cable
Contact Finish Thickness - Post
118.1µin (3.00µm)
Connector Type
Header
Row Spacing - Mating
0.079" (2.00mm)
Fastening Type
Push-Pull
Insulation Material
Polyamide (PA46), Nylon 4/6
Features
Board Guide, Mating Flange
Series
Datamate J-Tek
Number of Positions Loaded
All
Contact Finish - Post
Tin-Lead
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Base Product Number
M80-703
