M80-7700845
M80-7700845
Favorite Products
Share:

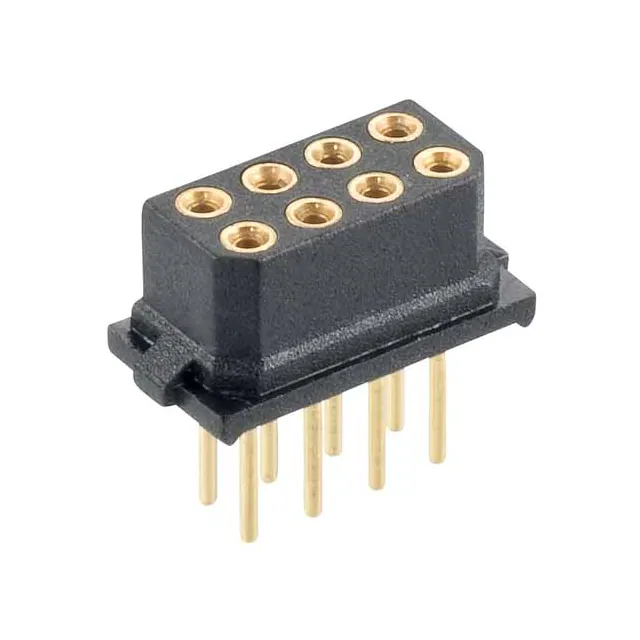

M80-7700845

M80-7700845
Harwin Inc.
CONN RCPT 8POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Ingress Protection
-
Connector Type
Receptacle
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Mounting Type
Through Hole
Contact Shape
Circular
Contact Material
Beryllium Copper
Package
Tube
Style
Board to Board or Cable
Number of Positions
8
Operating Temperature
-55°C ~ 125°C
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Current Rating (Amps)
-
Insulation Color
Black
Termination
Solder
Mated Stacking Heights
7.23mm, 7.85mm
Base Product Number
M80-770
Contact Length - Post
0.177" (4.50mm)
Insulation Material
Polyamide (PA46), Nylon 4/6
Contact Type
Female Socket
Fastening Type
Locking Ramp
Contact Finish - Mating
Gold
Insulation Height
0.202" (5.14mm)
Contact Finish - Post
Gold
Features
-
Applications
Automotive, General Purpose, Military
Series
Datamate L-Tek
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Voltage Rating
120V
Contact Finish Thickness - Post
10.0µin (0.25µm)
Mfr
Harwin Inc.
Product Status
Active
Row Spacing - Mating
0.079" (2.00mm)
