M80-8261042
M80-8261042
M80-8261042
Favorite Products
Share:

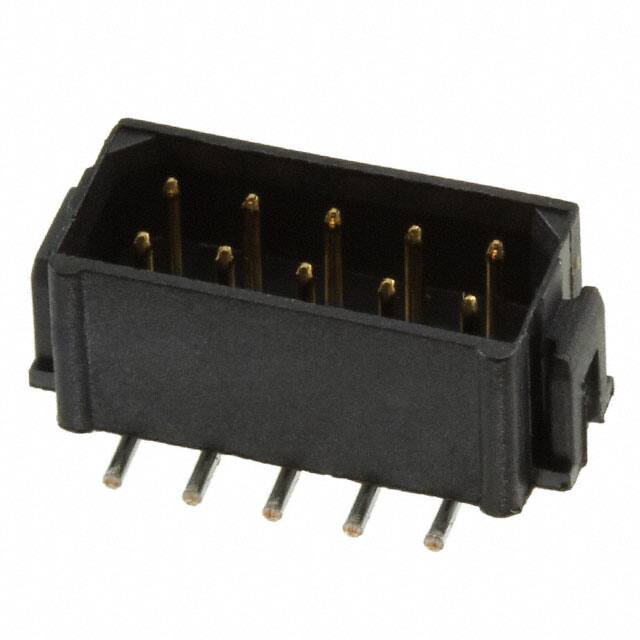

M80-8261042

M80-8261042
Harwin Inc.
CONN HEADER SMD 10POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
7.85mm, 8.45mm, 10.5mm, 14.25mm
Contact Type
Male Pin
Termination
Solder
Contact Shape
Circular
Contact Finish - Post
Tin
Fastening Type
Latch Holder

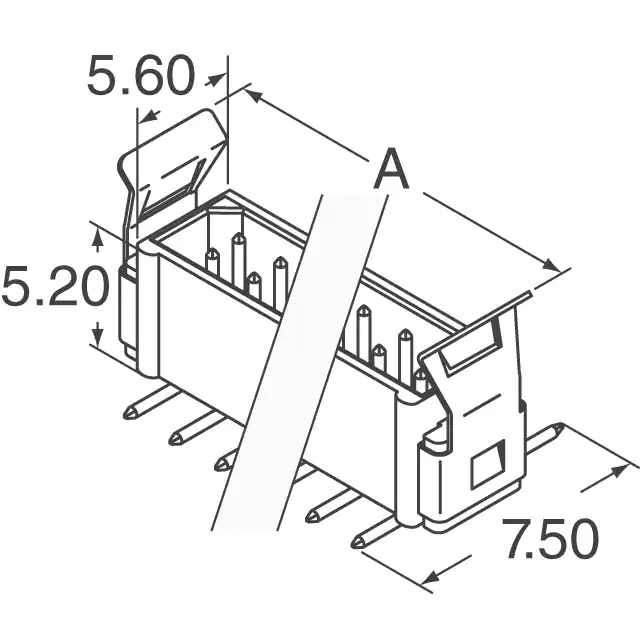

Insulation Height
0.205" (5.20mm)
Contact Material
Phosphor Bronze
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Voltage Rating
800V
Applications
-
Mfr
Harwin Inc.
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Contact Length - Post
-
Series
Datamate L-Tek
Connector Type
Plug
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Ingress Protection
-
Insulation Color
Black
Base Product Number
M80-826
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Post
118.1µin (3.00µm)
Number of Positions
10
Row Spacing - Mating
0.079" (2.00mm)
Style
Board to Board or Cable
Overall Contact Length
-
Contact Finish - Mating
Gold
Product Status
Active
Mounting Type
Surface Mount
Contact Length - Mating
-
Features
-
Current Rating (Amps)
2.2A
Package
Tube
Number of Positions Loaded
All
