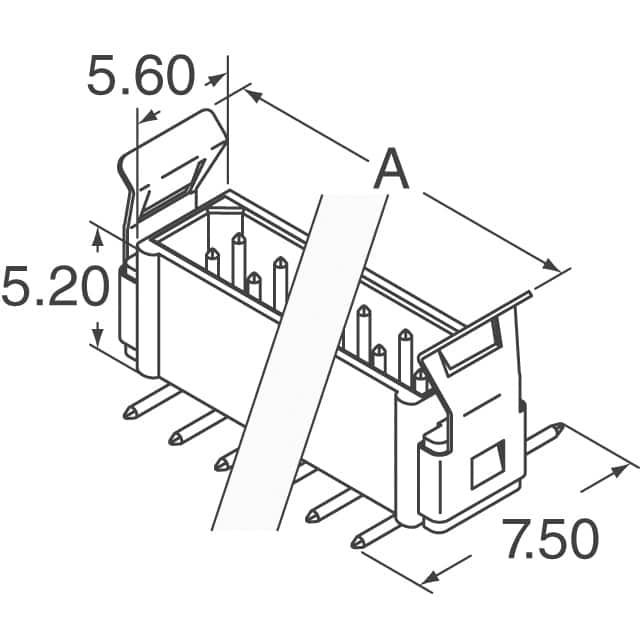

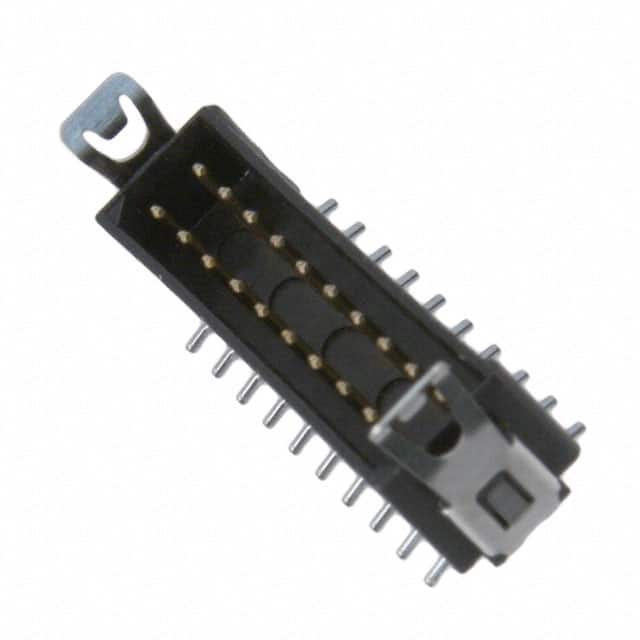

M80-8282042
M80-8282042
M80-8282042
Favorite Products
Share:

M80-8282042

M80-8282042
Harwin Inc.
CONN HEADER SMD 20POS 2MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Current Rating (Amps)
2.2A
Row Spacing - Mating
0.079" (2.00mm)
Contact Length - Mating
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Voltage Rating
800V
Product Status
Active
Insulation Height
0.205" (5.20mm)
Ingress Protection
-
Connector Type
Header
Contact Type
Male Pin
Number of Rows
2
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Pitch - Mating
0.079" (2.00mm)
Mounting Type
Surface Mount
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Operating Temperature
-55°C ~ 125°C
Contact Finish Thickness - Post
118.1µin (3.00µm)
Base Product Number
M80-828
Number of Positions
20
Style
Board to Board or Cable
Package
Tube
Contact Material
Phosphor Bronze
Mated Stacking Heights
7.85mm, 8.45mm, 10.5mm, 14.25mm
Series
Datamate L-Tek
Termination
Solder
Contact Length - Post
-
Contact Finish - Post
Tin
Features
-
Applications
-
Mfr
Harwin Inc.
Fastening Type
Latch Lock
Contact Shape
Circular
