M80-8402242
M80-8402242
Favorite Products
Share:

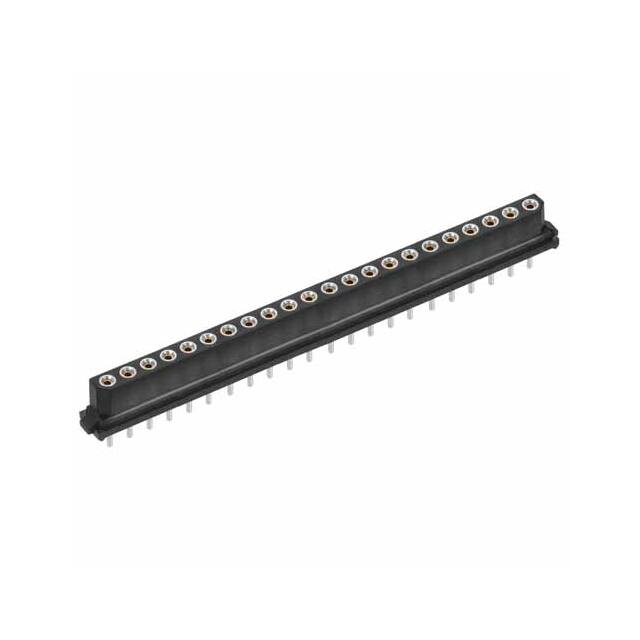

M80-8402242

M80-8402242
Harwin Inc.
CONN RCPT 22POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
-
Insulation Color
Black
Product Status
Active
Style
Board to Board or Cable
Fastening Type
Locking Ramp
Contact Length - Post
0.126" (3.20mm)
Contact Type
Female Socket
Insulation Height
0.202" (5.14mm)
Contact Finish - Post
Tin
Contact Material
Beryllium Copper
Contact Finish Thickness - Post
137.8µin (3.50µm)
Mfr
Harwin Inc.
Package
Tube
Contact Finish - Mating
Gold
Current Rating (Amps)
-
Ingress Protection
-
Applications
Automotive, General Purpose, Military
Number of Positions
22
Number of Positions Loaded
All
Pitch - Mating
0.079" (2.00mm)
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Operating Temperature
-55°C ~ 125°C
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Base Product Number
M80-840
Mated Stacking Heights
7.23mm, 7.83mm
Voltage Rating
800V
Contact Shape
Circular
Series
Datamate L-Tek
Connector Type
Receptacle
Number of Rows
1
Mounting Type
Through Hole
Termination
Solder
Material Flammability Rating
UL94 V-0
Features
-
