M80-8412642
M80-8412642
M80-8412642
Favorite Products
Share:

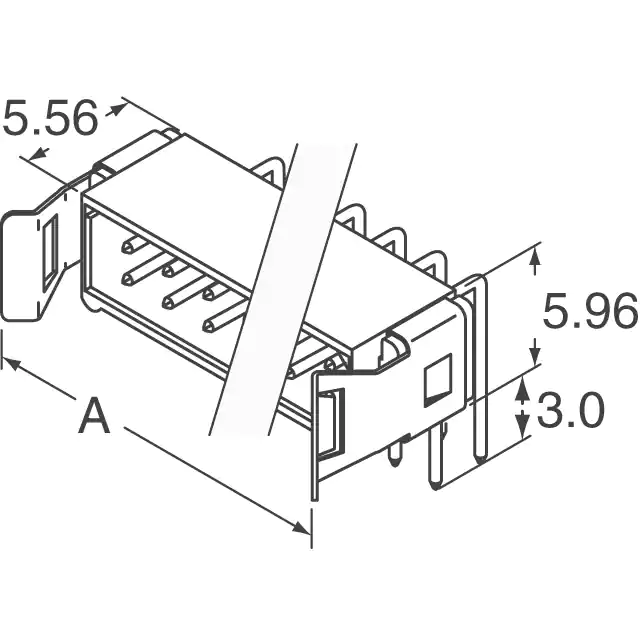

M80-8412642

M80-8412642
Harwin Inc.
CONN HEADER R/A 26POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.079" (2.00mm)
Applications
-
Pitch - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Mounting Type
Through Hole, Right Angle
Number of Positions Loaded
All
Contact Shape
Circular
Contact Finish - Mating
Gold
Series
Datamate L-Tek
Features
Strain Relief Clips
Operating Temperature
-55°C ~ 125°C
Insulation Color
Black
Mated Stacking Heights
-
Mfr
Harwin Inc.
Contact Type
Male Pin
Number of Positions
26
Package
Tube
Product Status
Active
Material Flammability Rating
UL94 V-0
Voltage Rating
120V
Connector Type
Header
Current Rating (Amps)
2.2A
Base Product Number
M80-841
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Termination
Solder
Insulation Height
0.235" (5.97mm)
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Style
Board to Board or Cable
Contact Length - Post
0.118" (3.00mm)
Ingress Protection
-
Contact Finish Thickness - Post
118.1µin (3.00µm)
Fastening Type
Latch Holder
Contact Length - Mating
-
Overall Contact Length
-
