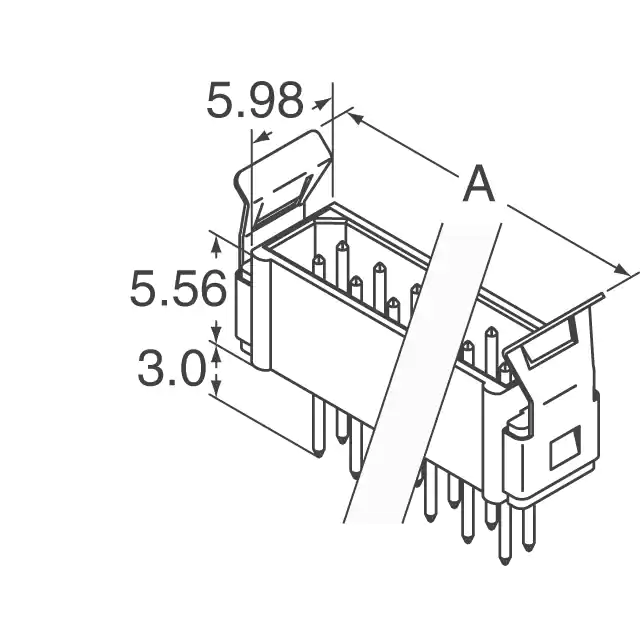

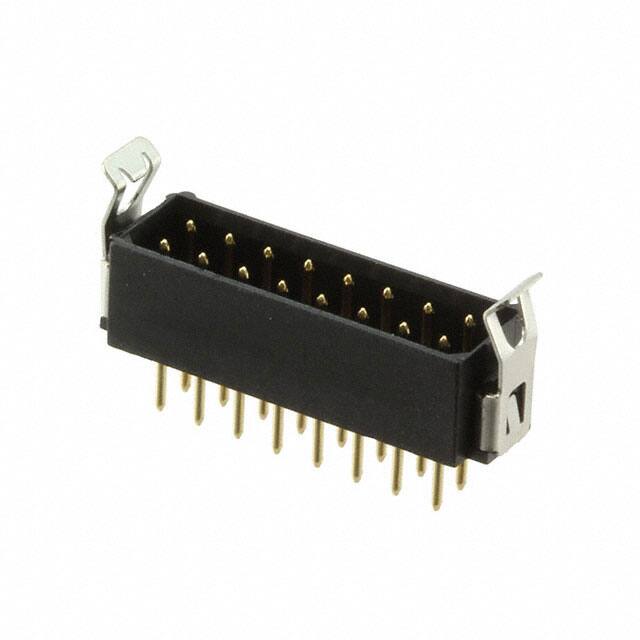

M80-8531645
M80-8531645
M80-8531645
Favorite Products
Share:

M80-8531645

M80-8531645
Harwin Inc.
CONN HEADER VERT 16POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Features
-
Current Rating (Amps)
2.2A per Contact
Shrouding
Shrouded - 4 Wall
Pitch - Mating
0.079" (2.00mm)
Termination
Solder
Contact Length - Post
0.118" (3.00mm)
Overall Contact Length
-
Contact Length - Mating
-
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
-
Contact Shape
Circular
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Voltage Rating
800V
Package
Tube
Material Flammability Rating
UL94 V-0
Applications
-
Mfr
Harwin Inc.
Connector Type
Header
Row Spacing - Mating
0.079" (2.00mm)
Number of Positions Loaded
All
Mated Stacking Heights
7.23mm, 7.85mm, 10.2mm, 13.51mm
Number of Positions
16
Number of Rows
2
Mounting Type
Through Hole
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Base Product Number
M80-853
Contact Type
Male Pin
Contact Material
Phosphor Bronze
Series
Datamate L-Tek
Product Status
Active
Style
Board to Board or Cable
Insulation Height
0.219" (5.56mm)
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Fastening Type
Latch Lock
Contact Finish - Post
-
Insulation Color
Black
