M80-8542042
M80-8542042
M80-8542042
M80-8542042
Favorite Products
Share:

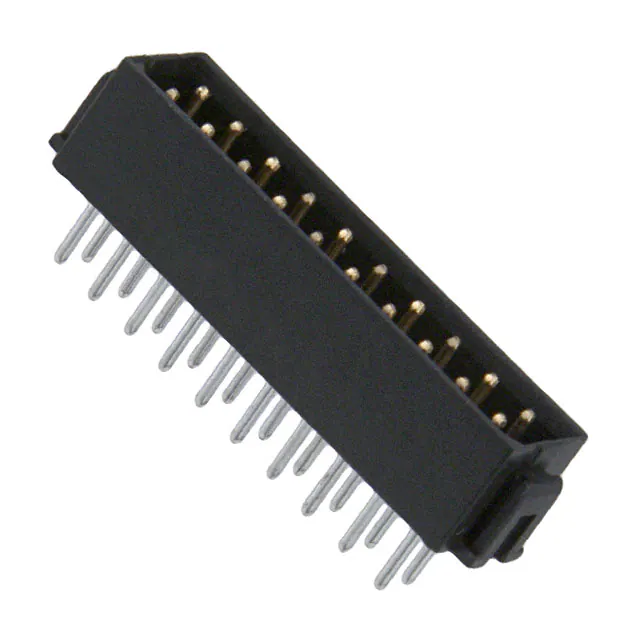

M80-8542042

M80-8542042
Harwin Inc.
CONN HEADER VERT 20POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
-
Features
-
Mounting Type
Through Hole
Pitch - Mating
0.079" (2.00mm)
Insulation Color
Black
Number of Positions Loaded
All
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Base Product Number
M80-854
Row Spacing - Mating
0.079" (2.00mm)
Style
Board to Board or Cable
Fastening Type
Latch Holder
Contact Length - Post
0.118" (3.00mm)
Series
Datamate L-Tek
Package
Tube
Contact Type
Male Pin
Number of Rows
2
Mated Stacking Heights
7.23mm, 7.85mm, 10.2mm, 13.51mm
Mfr
Harwin Inc.
Termination
Solder
Overall Contact Length
-
Operating Temperature
-55°C ~ 125°C
Voltage Rating
800V
Product Status
Active
Connector Type
Header
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Contact Material
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Number of Positions
20
Contact Finish - Post
Tin
Applications
-
Insulation Height
0.219" (5.56mm)
Contact Shape
Circular
Shrouding
Shrouded - 4 Wall
Contact Finish - Mating
Gold
Ingress Protection
-
Current Rating (Amps)
2.2A
Contact Finish Thickness - Post
118.1µin (3.00µm)
