M80-8672605
M80-8672605
Favorite Products
Share:

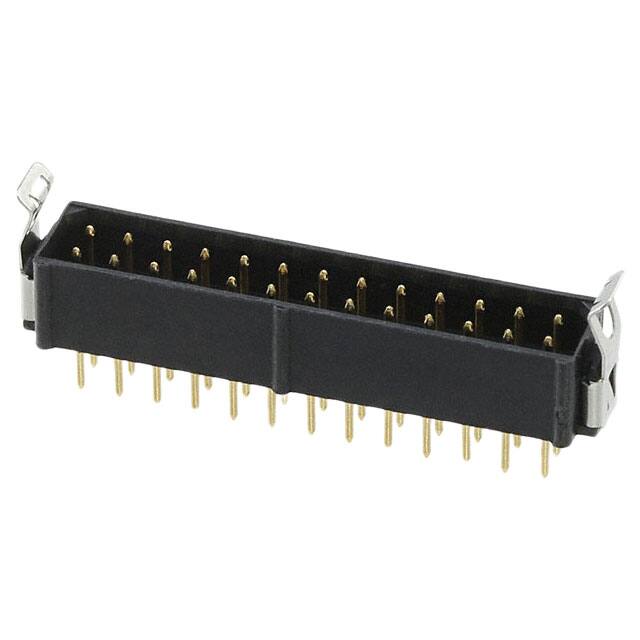

M80-8672605

M80-8672605
Harwin Inc.
CONN HEADER VERT 26POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Post
Gold
Pitch - Mating
0.079" (2.00mm)
Contact Type
Male Pin
Termination
Solder
Overall Contact Length
-
Contact Finish - Mating
Gold
Voltage Rating
800V
Contact Finish Thickness - Post
29.5µin (0.75µm)
Current Rating (Amps)
2.2A
Base Product Number
M80-867
Series
Datamate L-Tek
Connector Type
Header
Contact Material
Phosphor Bronze
Ingress Protection
-
Mated Stacking Heights
7.23mm, 7.85mm, 10.2mm, 13.51mm
Package
Tube
Number of Positions
26
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Insulation Height
0.219" (5.56mm)
Contact Shape
Circular
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Applications
-
Product Status
Active
Number of Positions Loaded
All
Style
Board to Board or Cable
Contact Length - Mating
-
Contact Length - Post
0.118" (3.00mm)
Features
-
Mfr
Harwin Inc.
Row Spacing - Mating
0.079" (2.00mm)
Mounting Type
Through Hole
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Insulation Material
Polyester, Glass Filled
Fastening Type
Latch Lock
