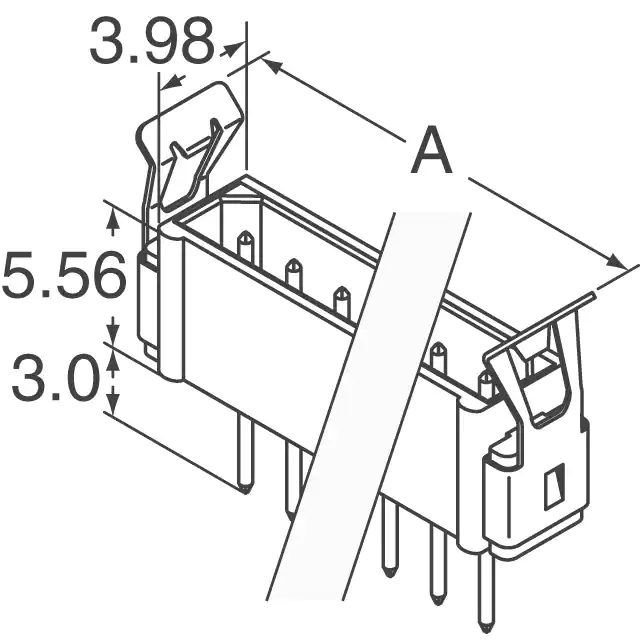

M80-8820542
M80-8820542
M80-8820542
Favorite Products
Share:

M80-8820542

M80-8820542
Harwin Inc.
CONN HEADER VERT 5POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Applications
-
Contact Length - Post
0.118" (3.00mm)
Connector Type
Header
Insulation Color
Black
Material Flammability Rating
UL94 V-0
Contact Finish - Mating
Gold
Mated Stacking Heights
7.23mm, 10.2mm, 13.46mm
Mfr
Harwin Inc.
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Package
Tube
Number of Rows
1
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Contact Material
Phosphor Bronze
Pitch - Mating
0.079" (2.00mm)
Style
Board to Board or Cable
Termination
Solder
Contact Shape
Circular
Contact Finish - Post
Tin
Ingress Protection
-
Voltage Rating
800V
Series
Datamate L-Tek
Product Status
Active
Contact Length - Mating
-
Insulation Height
0.219" (5.56mm)
Operating Temperature
-55°C ~ 125°C
Base Product Number
M80-882
Number of Positions
5
Features
-
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Type
Male Pin
Row Spacing - Mating
-
Fastening Type
Latch Lock
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type
Through Hole
Current Rating (Amps)
2.2A
