M80-8871401
M80-8871401
Favorite Products
Share:

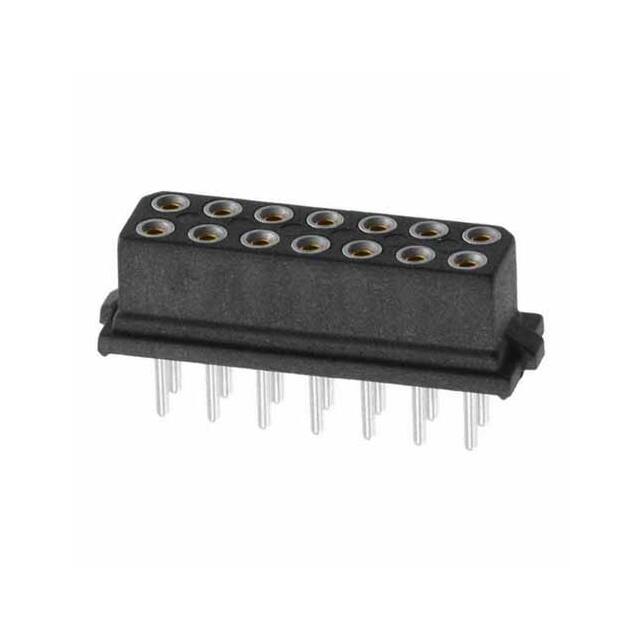

M80-8871401

M80-8871401
Harwin Inc.
CONN RCPT 14POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder
Insulation Color
Black
Package
Tube
Number of Rows
2
Number of Positions
14
Row Spacing - Mating
0.079" (2.00mm)
Voltage Rating
800V
Contact Shape
Circular
Contact Material
Beryllium Copper
Mfr
Harwin Inc.
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Contact Finish - Post
Tin-Lead
Features
-
Current Rating (Amps)
-
Product Status
Active
Insulation Height
0.202" (5.14mm)
Material Flammability Rating
UL94 V-0
Base Product Number
M80-887
Fastening Type
Locking Ramp
Contact Finish - Mating
Gold
Operating Temperature
-55°C ~ 125°C
Pitch - Mating
0.079" (2.00mm)
Mounting Type
Through Hole
Contact Length - Post
0.118" (3.00mm)
Mated Stacking Heights
7.23mm, 7.85mm
Insulation Material
Polyester, Glass Filled
Series
Datamate L-Tek
Applications
Automotive, General Purpose, Military
Connector Type
Receptacle
Contact Type
Female Socket
Style
Board to Board or Cable
Ingress Protection
-
Number of Positions Loaded
All
Contact Finish Thickness - Post
137.8µin (3.50µm)
