M80-8872005
M80-8872005
M80-8872005
Favorite Products
Share:

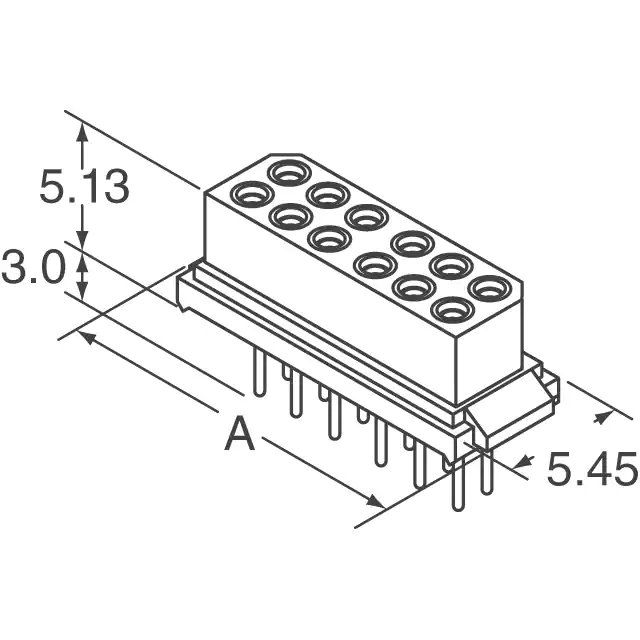

M80-8872005

M80-8872005
Harwin Inc.
CONN RCPT 20POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Pitch - Mating
0.079" (2.00mm)
Mated Stacking Heights
7.23mm, 7.85mm
Mfr
Harwin Inc.
Product Status
Active
Mounting Type
Through Hole
Insulation Color
Black
Contact Finish Thickness - Post
10.0µin (0.25µm)
Base Product Number
M80-887
Contact Finish - Mating
Gold
Insulation Material
Polyester, Glass Filled
Package
Tube
Style
Board to Board or Cable
Insulation Height
0.202" (5.14mm)
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Series
Datamate L-Tek
Contact Type
Female Socket
Number of Rows
2
Fastening Type
Locking Ramp
Applications
Automotive, General Purpose, Military
Number of Positions
20
Row Spacing - Mating
0.079" (2.00mm)
Ingress Protection
-
Features
-
Voltage Rating
800V
Contact Finish - Post
Gold
Contact Shape
Circular
Termination
Solder
Contact Length - Post
0.118" (3.00mm)
Contact Material
Beryllium Copper
Connector Type
Receptacle
Number of Positions Loaded
All
Current Rating (Amps)
-
