M80-8970305
M80-8970305
M80-8970305
Favorite Products
Share:

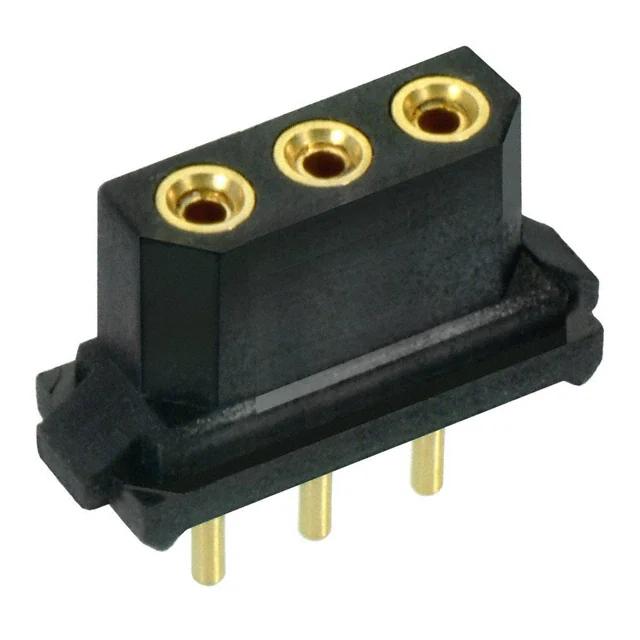

M80-8970305

M80-8970305
Harwin Inc.
CONN RCPT 3POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Features
-
Insulation Height
0.202" (5.14mm)
Mfr
Harwin Inc.
Series
Datamate L-Tek
Style
Board to Board or Cable
Contact Finish - Post
Gold
Contact Shape
Circular
Material Flammability Rating
UL94 V-0
Termination
Solder
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Mated Stacking Heights
7.23mm, 7.83mm
Contact Type
Female Socket
Product Status
Active
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Current Rating (Amps)
-
Applications
Automotive, General Purpose, Military
Connector Type
Receptacle
Row Spacing - Mating
-
Insulation Color
Black
Contact Length - Post
0.118" (3.00mm)
Voltage Rating
800V
Package
Tube
Fastening Type
Locking Ramp
Contact Finish Thickness - Post
-
Pitch - Mating
0.079" (2.00mm)
Mounting Type
Through Hole
Base Product Number
M80-897
Number of Positions
3
Number of Rows
1
Contact Finish - Mating
Gold
Insulation Material
Polyester, Glass Filled
Contact Material
Beryllium Copper
