M80-8970705
M80-8970705
M80-8970705
Favorite Products
Share:

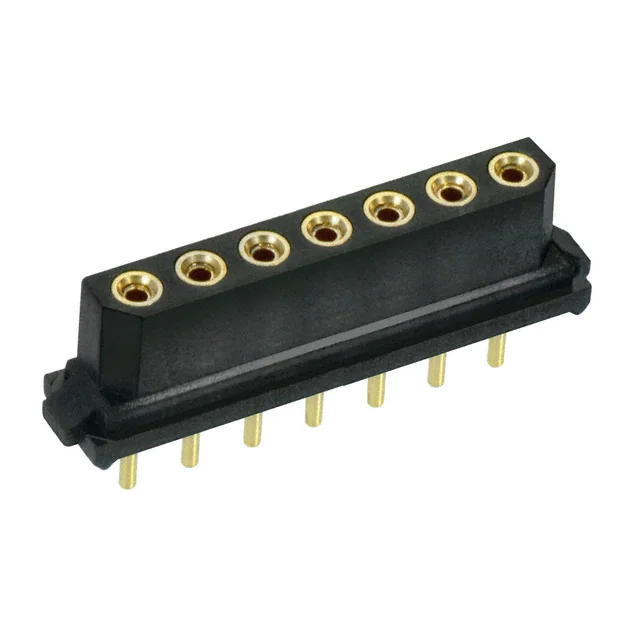

M80-8970705

M80-8970705
Harwin Inc.
CONN RCPT 7POS 0.079 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
0.118" (3.00mm)
Voltage Rating
800V
Contact Finish - Mating
Gold
Mfr
Harwin Inc.
Connector Type
Receptacle
Contact Type
Female Socket
Number of Positions
7
Mated Stacking Heights
7.23mm, 7.83mm
Current Rating (Amps)
-
Series
Datamate L-Tek
Package
Tube
Style
Board to Board or Cable
Mounting Type
Through Hole
Termination
Solder
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Applications
Automotive, General Purpose, Military
Contact Shape
Circular
Product Status
Active
Operating Temperature
-55°C ~ 125°C
Contact Material
Beryllium Copper
Contact Finish Thickness - Post
-
Base Product Number
M80-897
Row Spacing - Mating
-
Features
-
Insulation Color
Black
Ingress Protection
-
Number of Positions Loaded
All
Fastening Type
Locking Ramp
Insulation Height
0.202" (5.14mm)
Contact Finish - Post
Gold
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Material Flammability Rating
UL94 V-0
Insulation Material
Polyester, Glass Filled
