MN114BX
MN114BX
MN114BX
Favorite Products
Share:

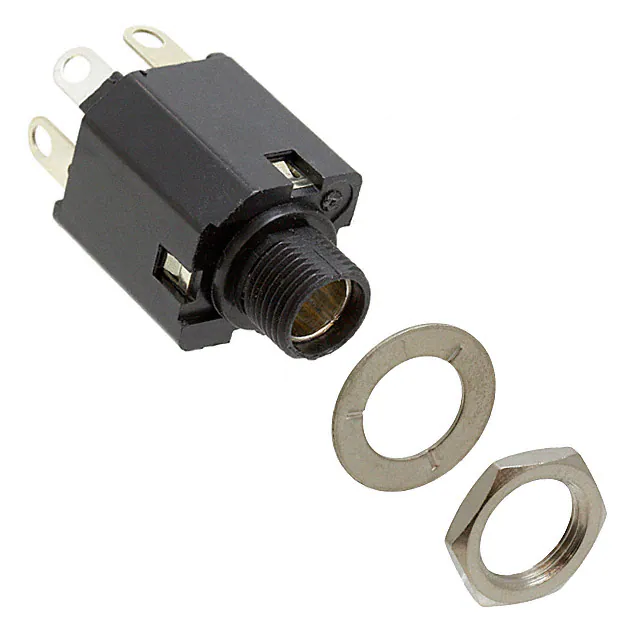

MN114BX

MN114BX
Switchcraft Inc.
CONN JACK STEREO 6.35MM PNL MNT
Barrel - Audio Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
Hi-D JAX® MN-11*
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
Mating Length/Depth
-
Base Product Number
MN114B
Connector Type
Phone Jack
Body Material
-
Body Color
Black
Contact Material
Brass
Signal Lines
Stereo (3 Conductor, TRS)
Thread Size
3/8"-32
Mfr
Switchcraft Inc.
Mounting Type
Panel Mount, Through Hole
Panel Hole Size
0.375" (9.52mm)
Gender
Female
Internal Switch(s)
Two Switches
Package
Bulk
Number of Positions/Contacts
3 Conductors, 5 Contacts
Termination
Solder Eyelet(s)
Shielding
Unshielded
Operating Temperature
-
Contact Material - Plating
Tin
Cable Opening
-
Actual Diameter
0.250" (6.35mm)
Features
Mounting Hardware, Thread Lock
Insulation Color
-
Voltage - Rated
-
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material
Thermoplastic
Product Status
Active
