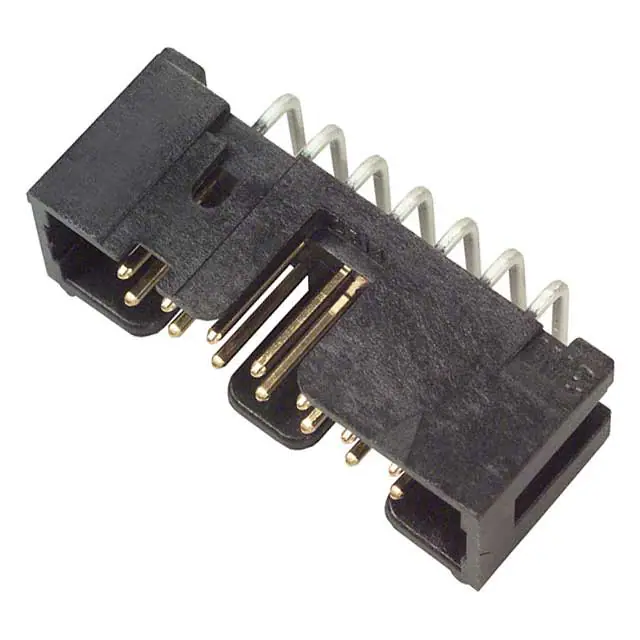

N2514-5002RB-WD
N2514-5002RB-WD
N2514-5002RB-WD
Favorite Products
Share:

N2514-5002RB-WD

N2514-5002RB-WD
3M
CONN HEADER R/A 14POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
N2514
Number of Rows
2
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Shrouding
Shrouded - 4 Wall
Series
2500
Connector Type
Header
Style
Board to Board or Cable
Contact Length - Mating
0.243" (6.17mm)
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
1.75A
Number of Positions
14
Insulation Height
0.338" (8.59mm)
Operating Temperature
-55°C ~ 105°C
Applications
-
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
-
Mated Stacking Heights
-
Contact Finish - Post
Tin
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Ingress Protection
-
Contact Finish Thickness - Post
200.0µin (5.08µm)
Mfr
3M
Package
Tape & Reel (TR)^^Cut Tape (CT)
Contact Type
Male Pin
Contact Shape
Square
Contact Material
Copper Alloy
Product Status
Active
Mounting Type
Through Hole, Right Angle
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Post
0.112" (2.84mm)
Contact Finish - Mating
Gold
Features
Keying Slot
Voltage Rating
-
