N2524-60K2-RB
N2524-60K2-RB
Favorite Products
Share:

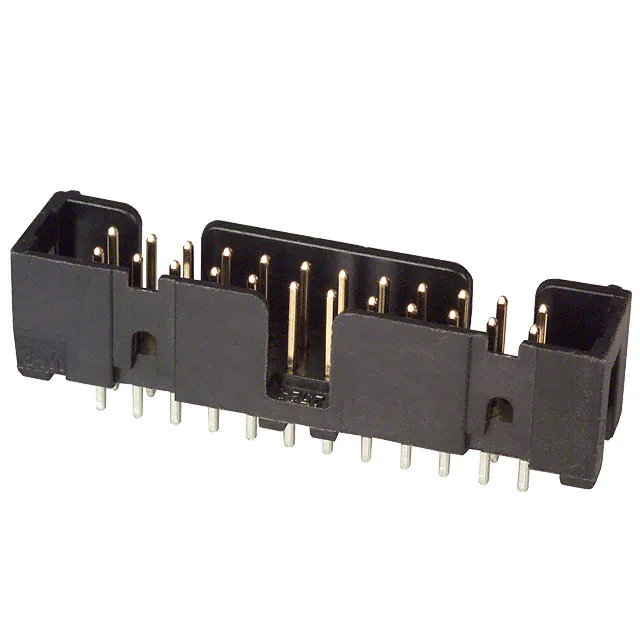

N2524-60K2-RB

N2524-60K2-RB
3M
CONN HEADER VERT 24POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Overall Contact Length
-
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Number of Positions
24
Features
Keying Slot
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Insulation Height
0.390" (9.91mm)
Contact Finish - Mating
Gold
Applications
-
Base Product Number
N2524
Contact Length - Post
0.112" (2.84mm)
Contact Shape
Square
Contact Material
Copper Alloy
Operating Temperature
-55°C ~ 105°C
Number of Rows
2
Mounting Type
Through Hole
Termination
Kinked Pin, Solder
Voltage Rating
-
Fastening Type
Push-Pull
Package
Bulk
Product Status
Obsolete
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Contact Length - Mating
0.243" (6.17mm)
Contact Finish - Post
Tin
Ingress Protection
-
Series
2500
Contact Type
Male Pin
Insulation Color
Black
Mfr
3M
Connector Type
Header
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Current Rating (Amps)
1.75A
Contact Finish Thickness - Post
200.0µin (5.08µm)
