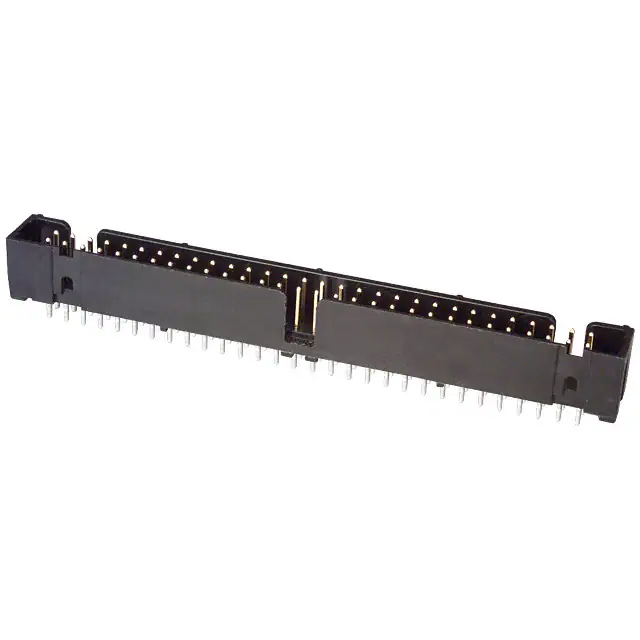

N2560-6002-RB
N2560-6002-RB
N2560-6002-RB
Favorite Products
Share:

N2560-6002-RB

N2560-6002-RB
3M
CONN HEADER VERT 60POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Product Status
Active
Contact Type
Male Pin
Style
Board to Board or Cable
Contact Length - Post
0.112" (2.84mm)
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Number of Rows
2
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Mated Stacking Heights
-
Termination
Solder
Voltage Rating
-
Contact Finish Thickness - Post
200.0µin (5.08µm)
Connector Type
Header
Overall Contact Length
-
Applications
-
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Number of Positions
60
Insulation Height
0.390" (9.91mm)
Contact Finish - Mating
Gold
Contact Finish - Post
Tin
Operating Temperature
-55°C ~ 105°C
Current Rating (Amps)
1.75A
Contact Shape
Square
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Features
Keying Slot
Base Product Number
N2560
Series
2500
Shrouding
Shrouded - 4 Wall
Fastening Type
Push-Pull
Insulation Color
Black
Mfr
3M
Number of Positions Loaded
All
Contact Length - Mating
0.243" (6.17mm)
