N3428-6002RB
N3428-6002RB
Favorite Products
Share:

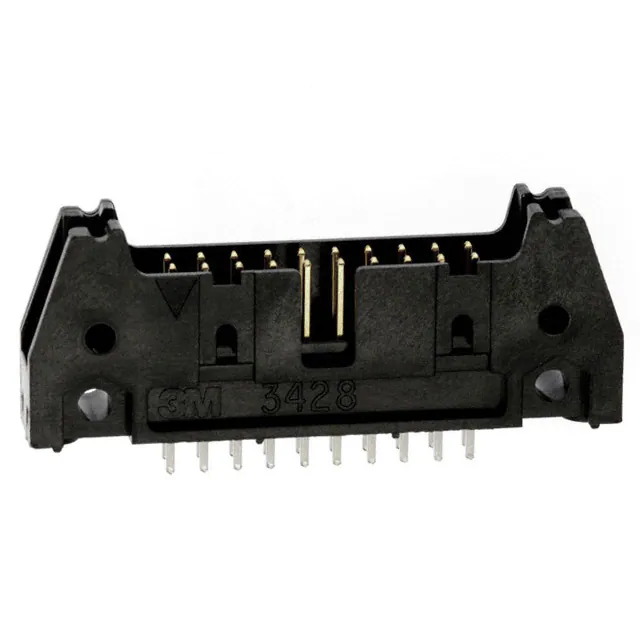

N3428-6002RB

N3428-6002RB
3M
CONN HEADER VERT 20POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Active
Insulation Height
0.680" (17.27mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Mated Stacking Heights
-
Package
Bulk
Contact Finish - Mating
Gold
Series
3000
Style
Board to Board or Cable
Termination
Solder
Fastening Type
Push-Pull
Voltage Rating
-
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
0.652" (16.56mm)
Contact Shape
Square
Base Product Number
N3428
Mfr
3M
Contact Length - Post
0.112" (2.84mm)
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature
-55°C ~ 105°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
1.75A
Number of Rows
2
Contact Finish - Post
Tin
Connector Type
Header
Number of Positions
20
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Contact Material
Copper Alloy
Features
Keying Slot, Mounting Flange
Mounting Type
Through Hole
Contact Length - Mating
0.240" (6.10mm)
Contact Finish Thickness - Post
200.0µin (5.08µm)
Applications
-
