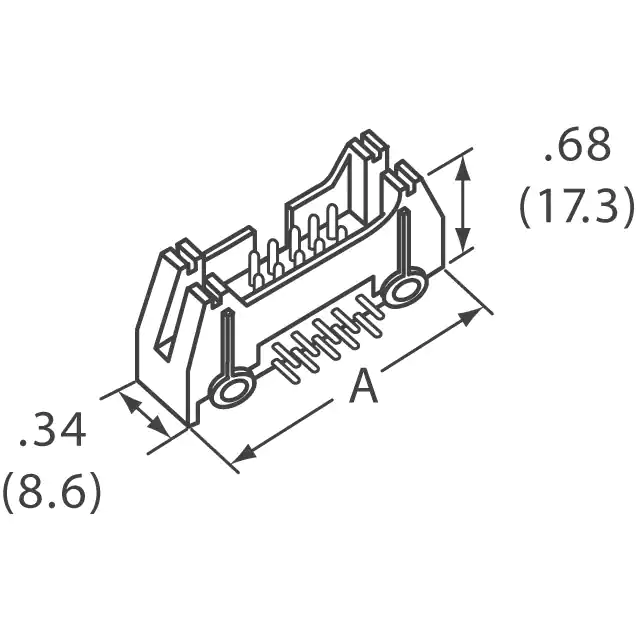

N3793-5002RB
N3793-5002RB
N3793-5002RB
Favorite Products
Share:

N3793-5002RB

N3793-5002RB
3M
CONN HEADER R/A 10POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
0.112" (2.84mm)
Contact Shape
Square
Operating Temperature
-55°C ~ 105°C
Series
3000
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Features
Keying Slot, Mounting Flange
Termination
Solder
Contact Material
Copper Alloy
Base Product Number
N3793
Mated Stacking Heights
-
Package
Bulk
Fastening Type
Push-Pull
Contact Length - Mating
0.240" (6.10mm)
Product Status
Active
Row Spacing - Mating
0.100" (2.54mm)
Insulation Height
0.340" (8.64mm)
Voltage Rating
-
Mfr
3M
Connector Type
Header
Number of Positions
10
Ingress Protection
-
Current Rating (Amps)
1.75A
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Rows
2
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Applications
-
Style
Board to Board or Cable
Overall Contact Length
-
Insulation Color
Black
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish - Mating
Gold
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
